KUT681 Portable Ultrasonic Flaw Detector with IPS Display & PDF Reporting
Regular price
$1,459.00

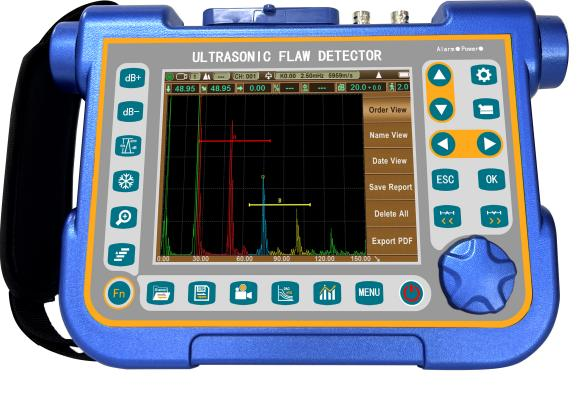

KUT681 Portable Ultrasonic Flaw Detector
Inspect internal discontinuities without cutting into the workpiece. The KUT681 is a portable digital ultrasonic flaw detector for locating and evaluating indications such as cracks, inclusions and pores, with thickness measurement and composite-material quality checks also described in the original product information. Its bright IPS screen makes waveforms easy to follow during on-site inspection, while saved records and PDF export simplify the handoff after a test.
Designed for inspection work
- See subtle echoes: 640 × 480 multi-color IPS display with 60 Hz refresh, adjustable brightness and four interface styles.

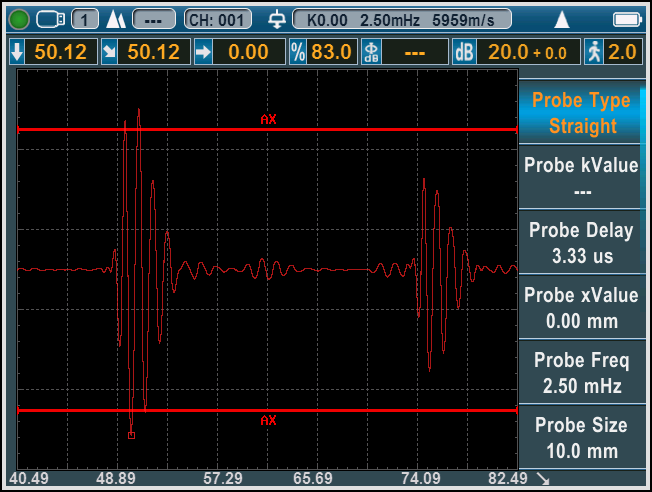

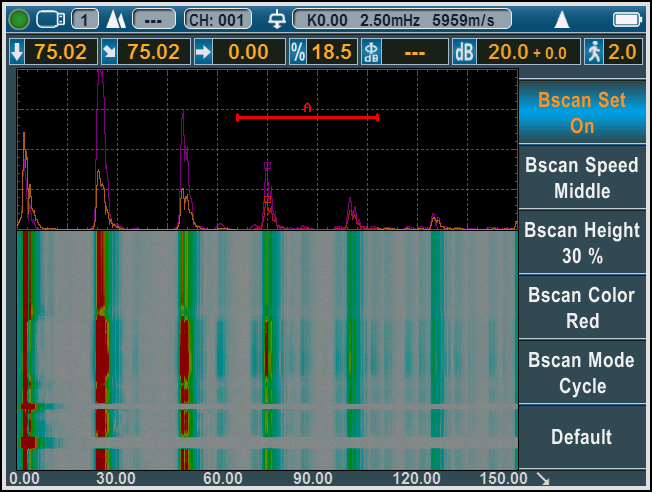

- Locate and size indications: automatic probe calibration, live sound-path, surface-distance, depth and amplitude readouts, two independent gates, DAC/AVG sizing, peak hold, A-scan freeze and B-scan display.
- Document results: save waveforms as CSV, capture BMP screenshots and generate PDF reports for export to a USB drive.
- Keep setups ready: storage for 500 channel files and up to 1,000 report files; video recording supports 10 clips of up to 5 minutes each in internal storage.

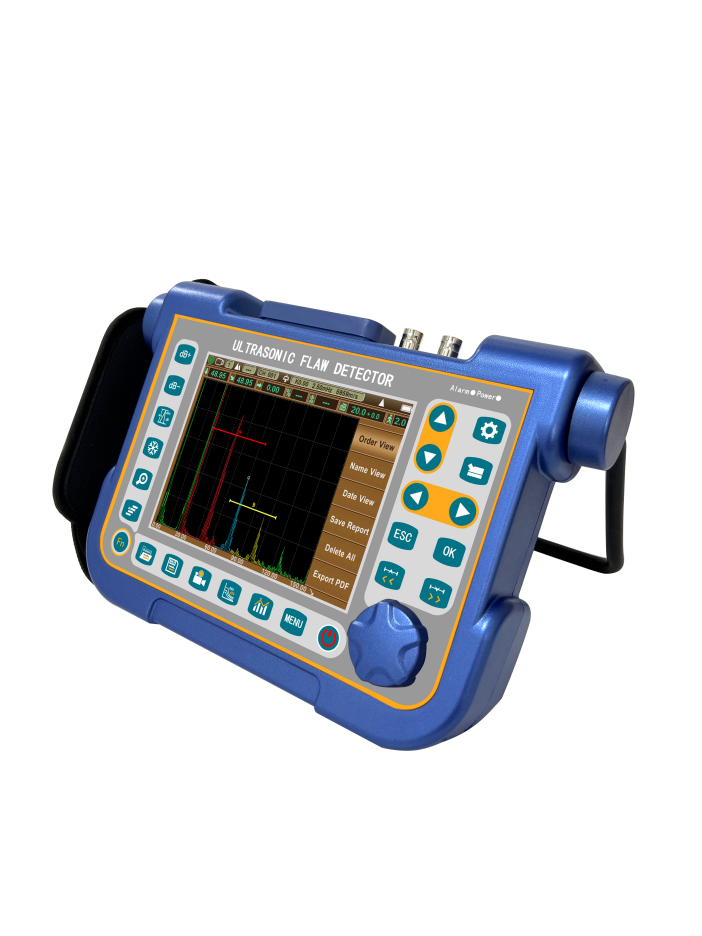

- Carry it to the job: rotating stand and protective rubber sheath, with a stated operating time of more than 12 hours on the lithium-ion battery.
Standard-model technical specifications
- Steel measurement range: 0–15 m; the original table also lists transmission up to 30 m.
- Material velocity setting: 100–15,000 m/s.
- Protection rating: IP65 for the standard model.
- Pulse repetition: 20–2,000 Hz; pulse width: 0.1–0.5 μs.
- Bandwidth: 0.1–20 MHz; gain: up to 110 dB with 0.1, 1, 2 and 6 dB adjustment steps.
- Rectification: positive half-wave, negative half-wave, full-wave and RF.
- Interfaces: USB/RS232 communication; BNC/LEMO probe interface listed.
- Dimensions and weight: 230 × 157 × 52 mm; approximately 1.12 kg.
- Operating temperature: −10°C to 50°C.
Model distinction: the source specifications separately list an advanced version with a 20 m steel range, IP67 rating, weld-diagram menu and probe-frequency detection. These advanced-version specifications are not represented here as standard KUT681 features.
Standard package
KUT681 main unit (1), straight probe (1), angle probe (1), power adapter (1), probe connecting cable (1), USB drive (1), user manual (1) and instrument case (1). Other compatible probe types mentioned in the technical information are not listed as included.
