KT320 Ultrasonic Thickness Gauge with PC Software & 300mm Measuring Range

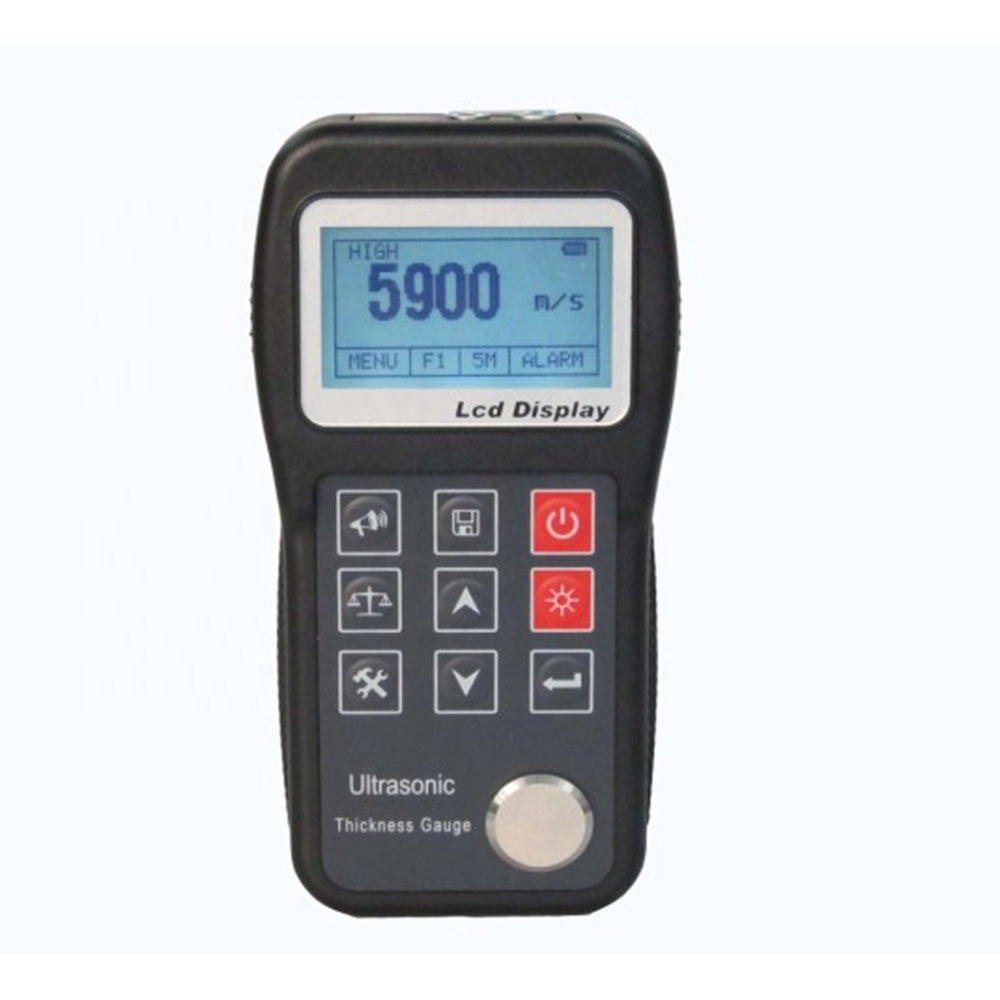

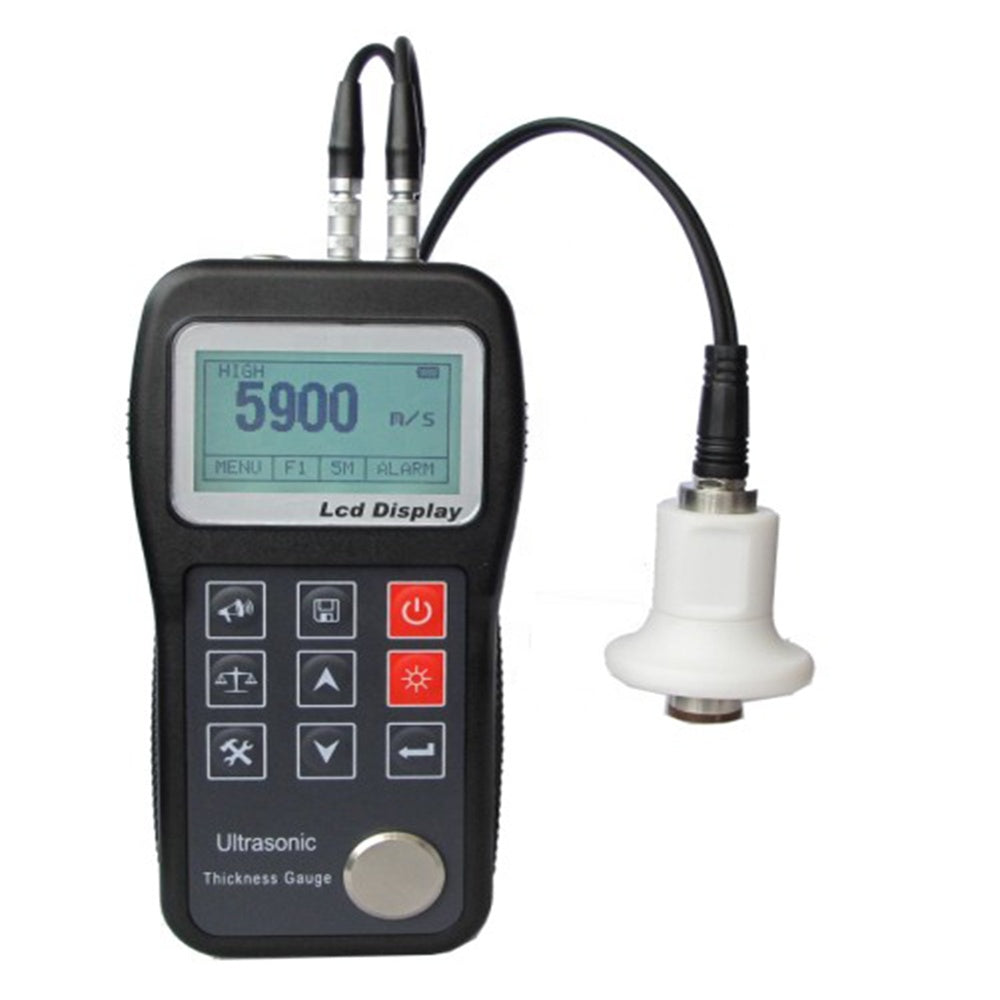

KT320 Ultrasonic Thickness Gauge

Check wall thickness on a pipe, casting or fabricated part without cutting a sample. The portable KT320 works with ultrasonic-conductive materials including steel, cast iron, aluminum, copper, plastics, ceramics, glass and fiberglass. A backlit display, coupling indicator and onboard measurement memory make it practical for routine inspections on the shop floor or in the field.

Features that help at the workpiece

• Measure without cutting: ultrasonic thickness readings across a listed overall range of 0.75–300 mm, depending on the probe and material.
• Calibrate for the job: probe-zero and two-point calibration, plus sound-velocity measurement when thickness is known.
• Know when the probe is coupled: coupling-status alert helps identify a poor contact before recording a result.
• Keep and review results: memory for five files of 100 thickness values each, plus five sound-velocity values. Included PC software and USB cable allow review and printing of measurements on a computer.
• Carry it easily: LED backlight, battery indicator, automatic sleep and power-off in a 238 g instrument.

Technical specifications

• Overall measuring range: 0.75–300 mm (0.03–11.8 in), dependent on probe selection. The No5 standard probe is included; the source lists different upper limits for this probe in separate sections, so confirm its usable range for your material before measuring.
• Sound-velocity range: 1,000–9,999 m/s.
• Display resolution: 0.01 mm below 100 mm; 0.1 mm from 100 mm upward.
• Stated accuracy: ±(0.5% of thickness + 0.04 mm), dependent on material and conditions.

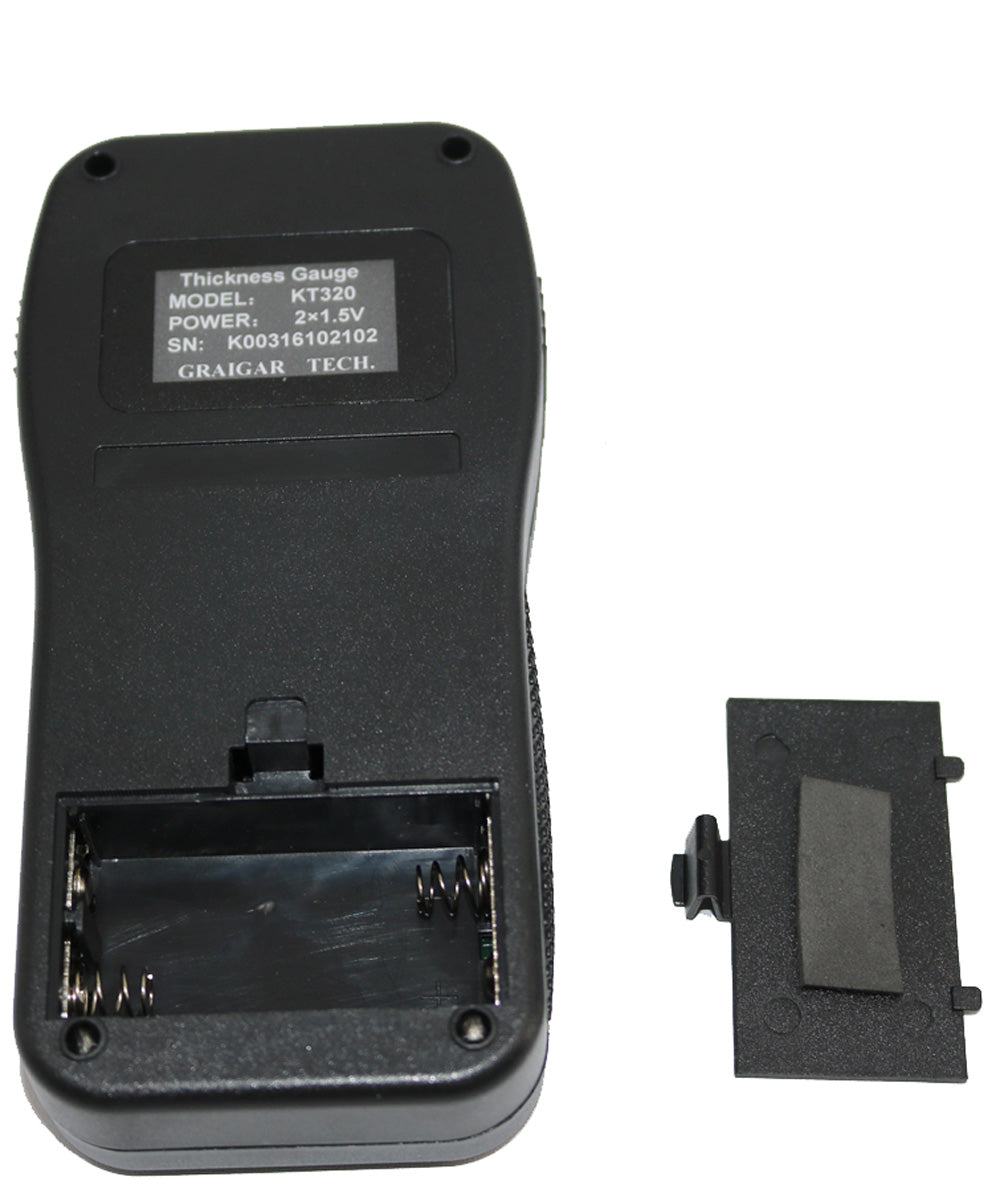

• Power: two AA batteries; listed operating time up to 250 hours with backlight off.
• Operating temperature: −10°C to 60°C.

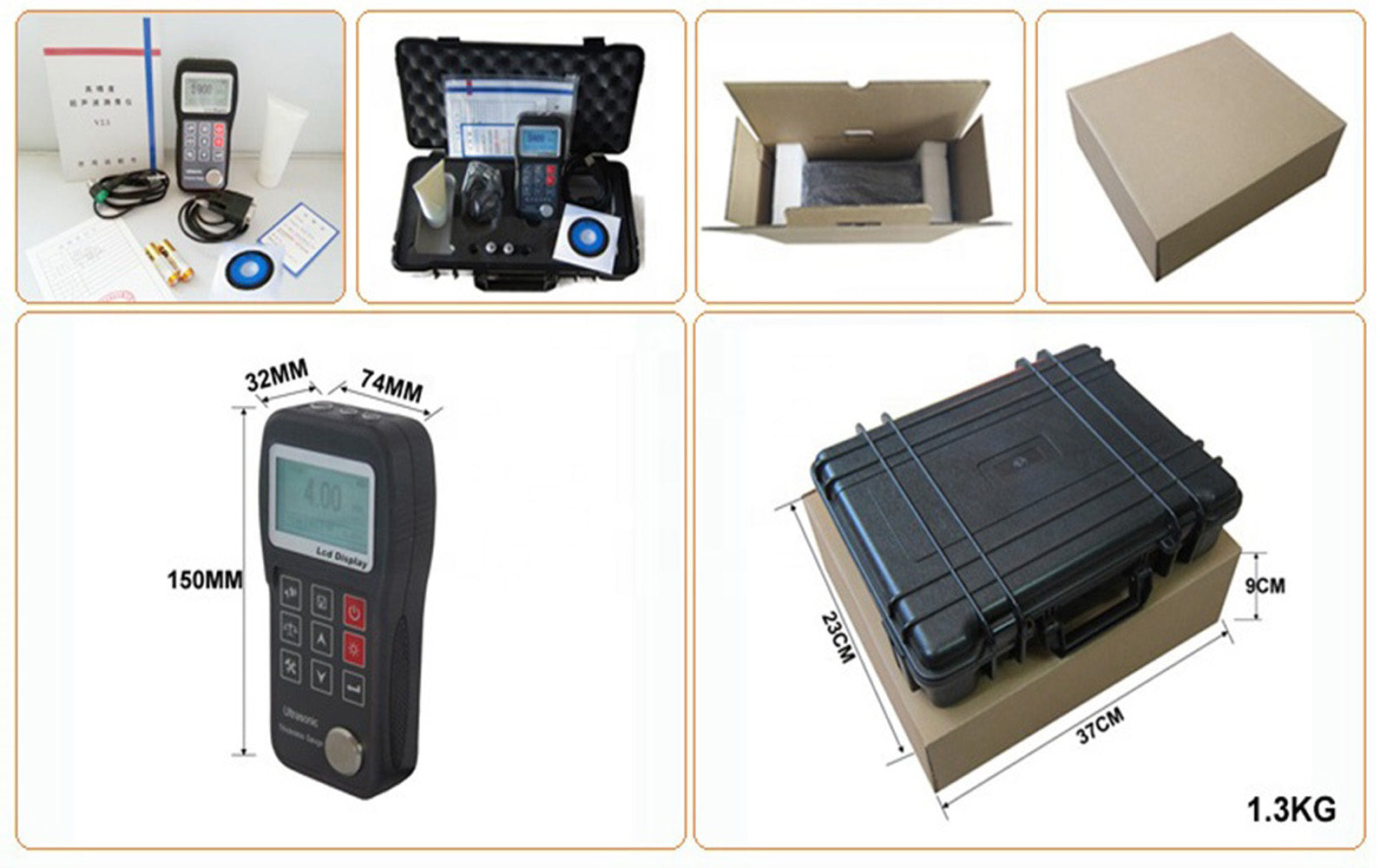

• Dimensions: 150 × 74 × 32 mm; weight: 238 g.

Standard package

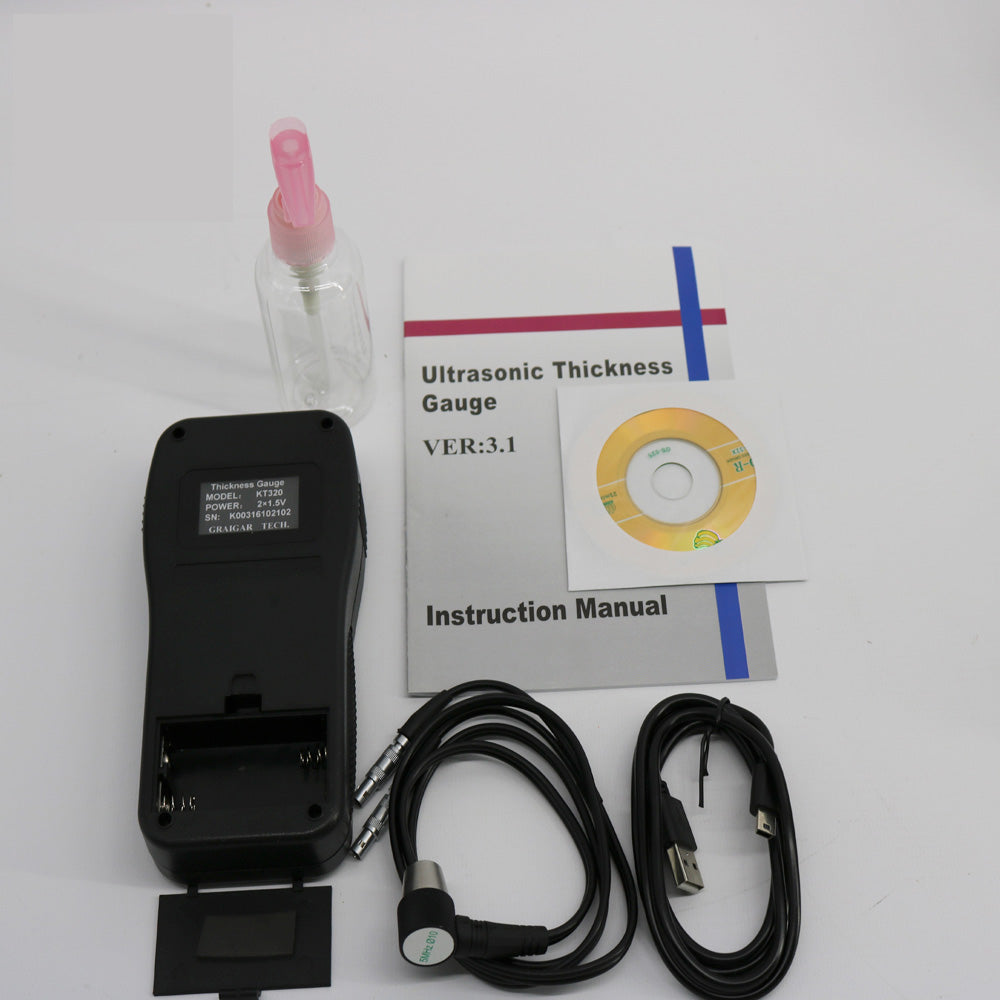

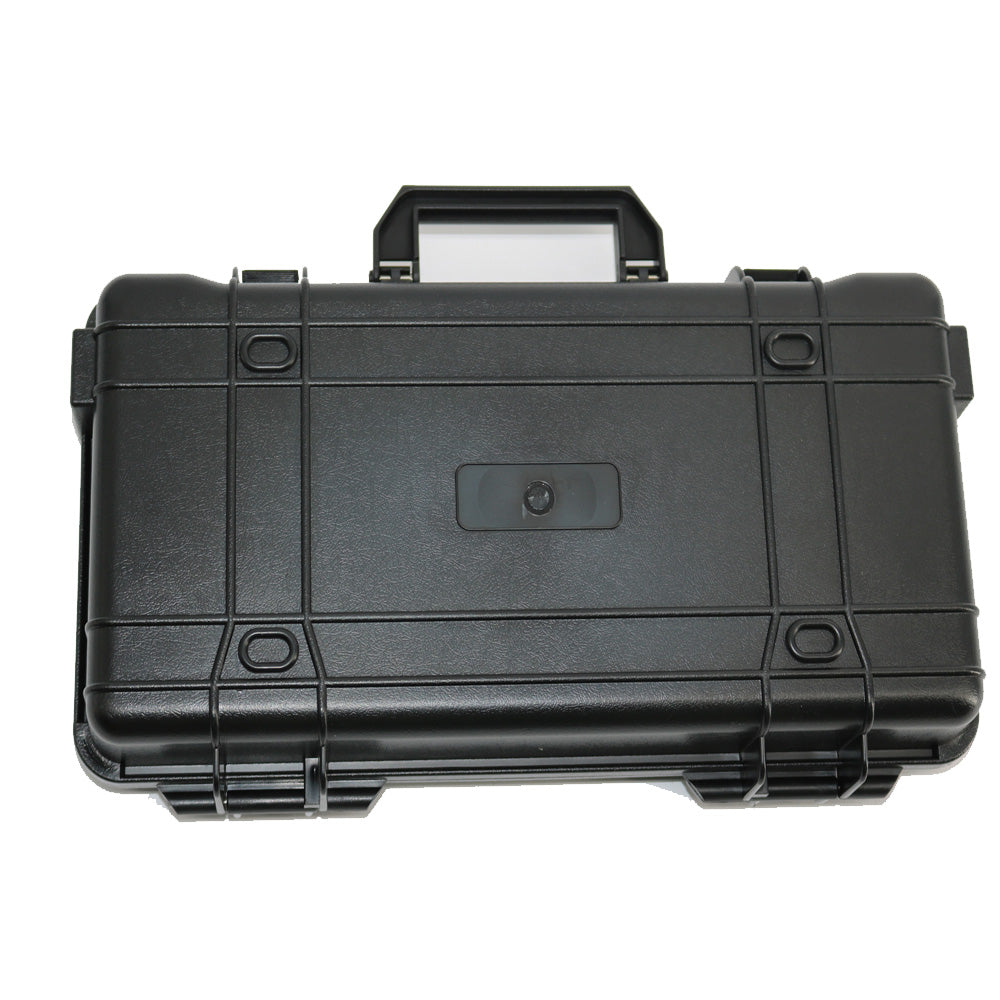

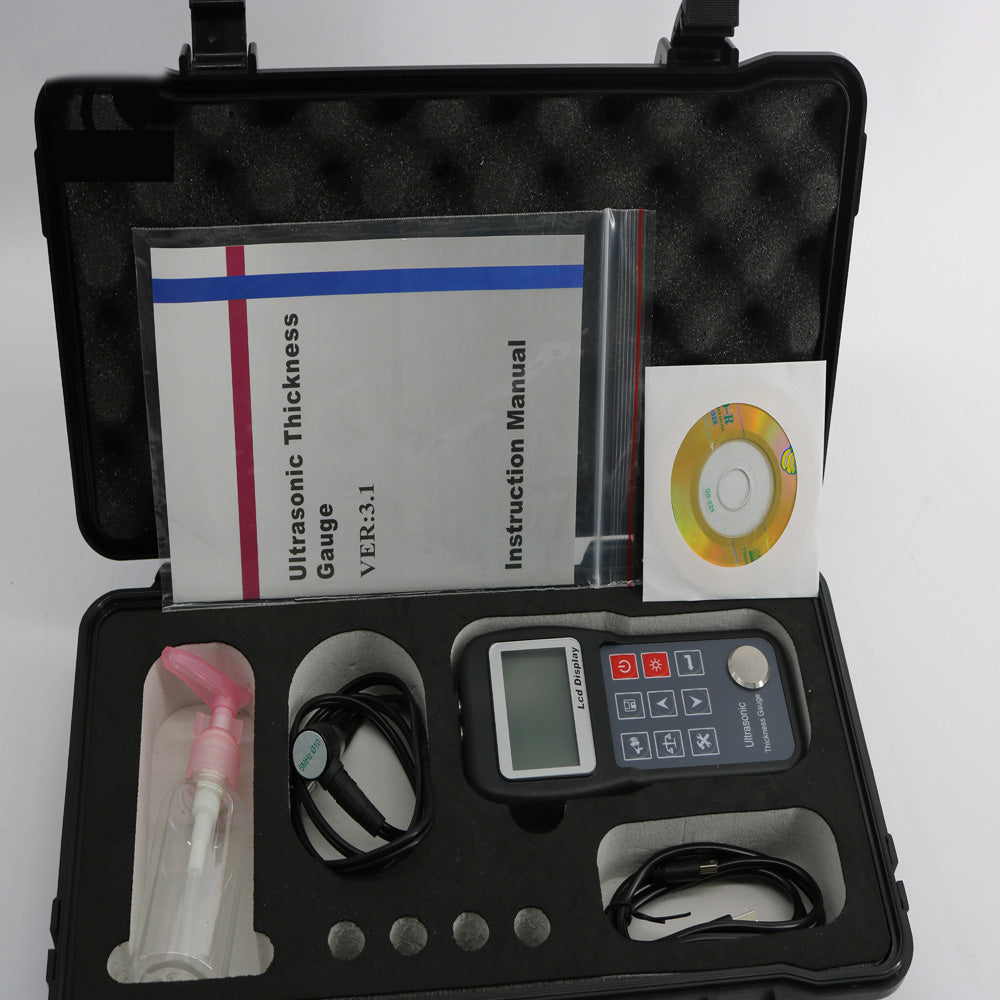

KT320 main unit (1), No5 standard probe (1), built-in 4 mm calibration piece, couplant (1, where shipping restrictions permit), PC software, USB cable, user manual and instrument case. The original listing states a two-year warranty. Couplant is marked as unsuitable for air transport in the source package list; its inclusion may therefore depend on shipping method.

Optional probes

• No2 casting probe: listed for steel and cast materials.
• No7 thin-workpiece probe: listed range 0.75–80 mm.
• HT5 / HT6 high-temperature probes: listed for up to 300°C / 400°C respectively, with a 3–200 mm stated range.

These specialty probes and high-temperature couplant are optional, not part of the standard package.
