KH190 Color Screen Portable Leeb Hardness Tester with Rechargeable Battery
Regular price
$339.00

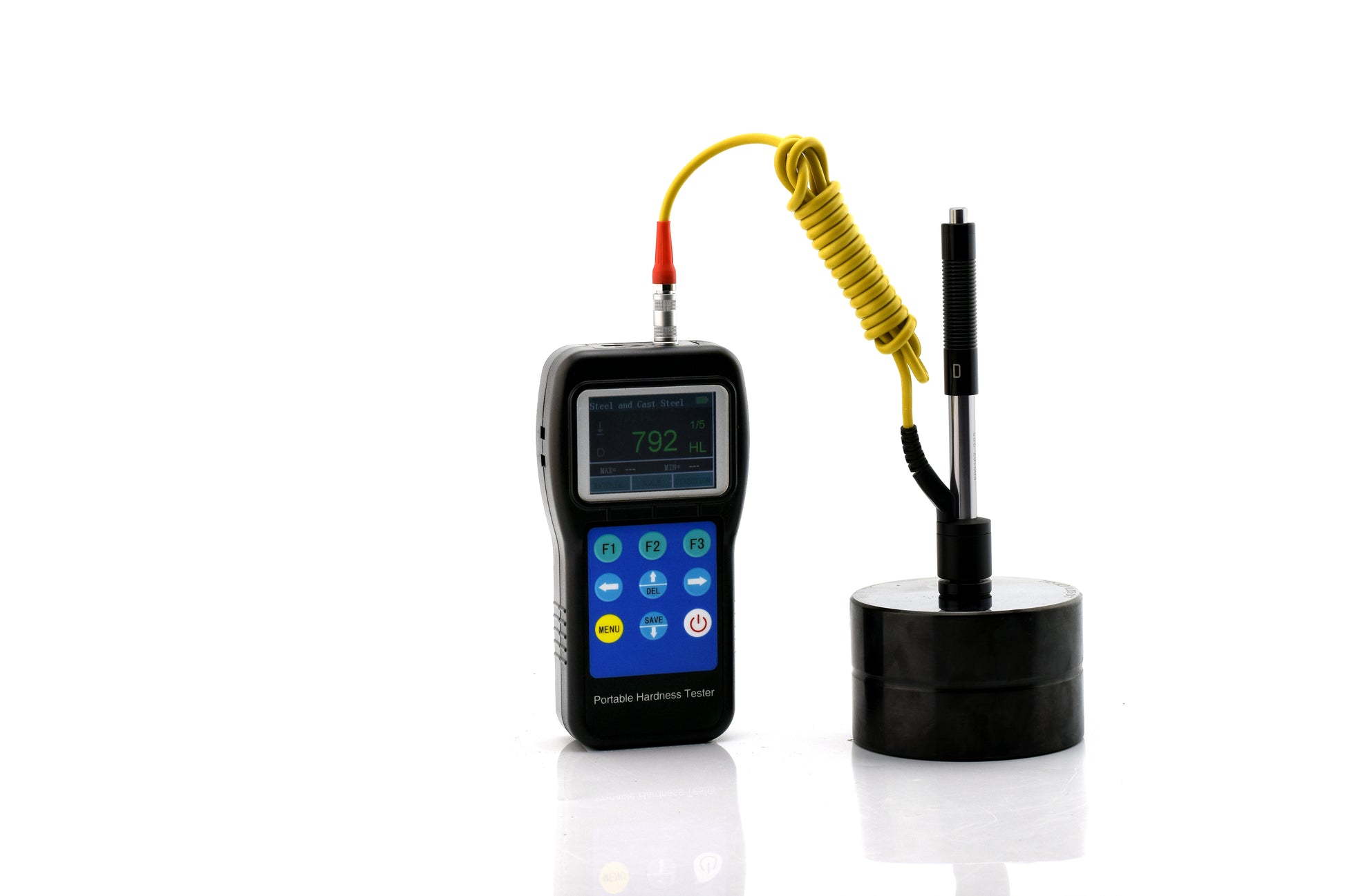

KH190 Portable Hardness Tester
| TECHNICAL DATA |
| Measuring Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel |

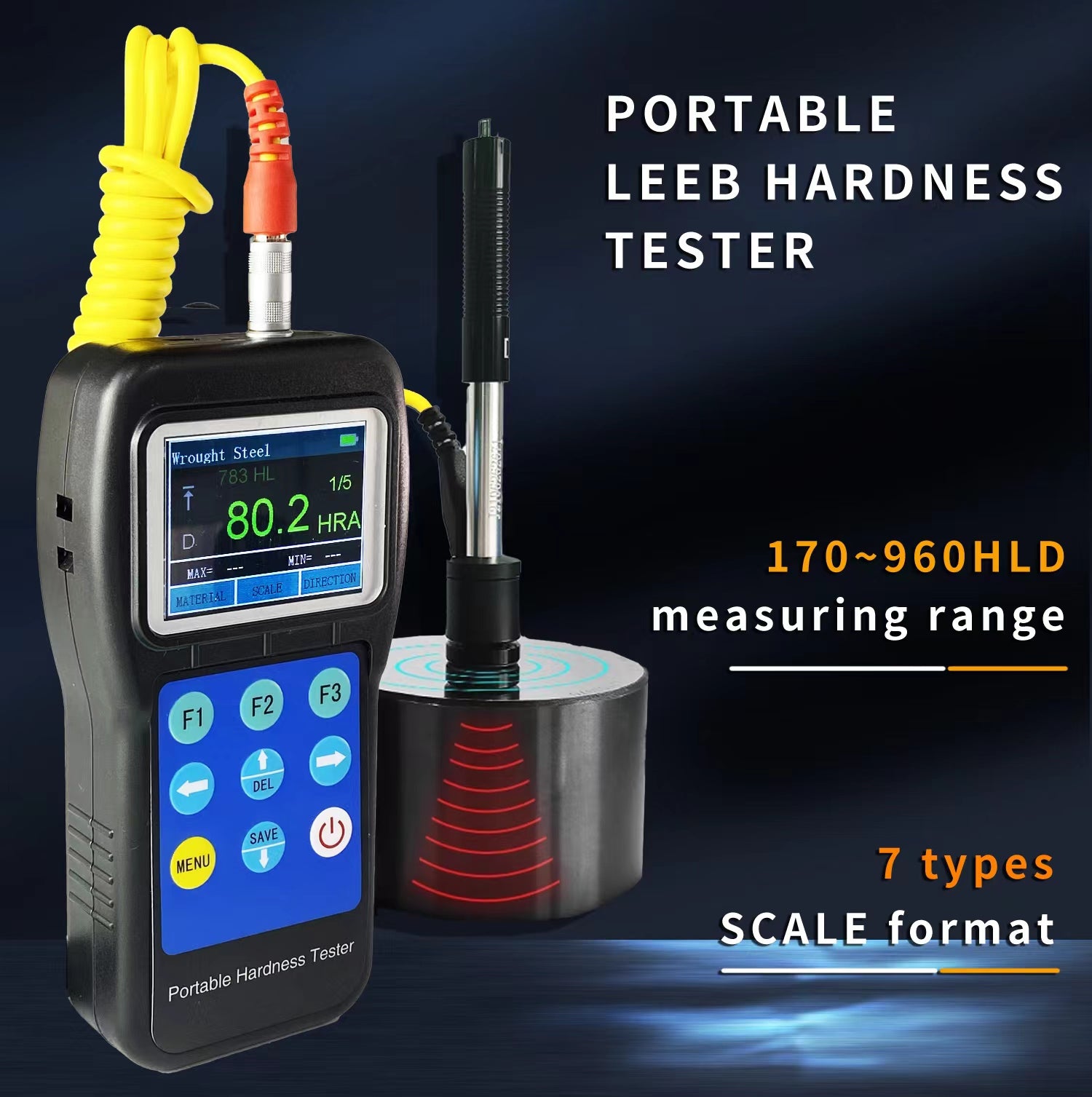

| Measuring Range | HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7) |
| Indication Error | ±6HLD (D impact device) |

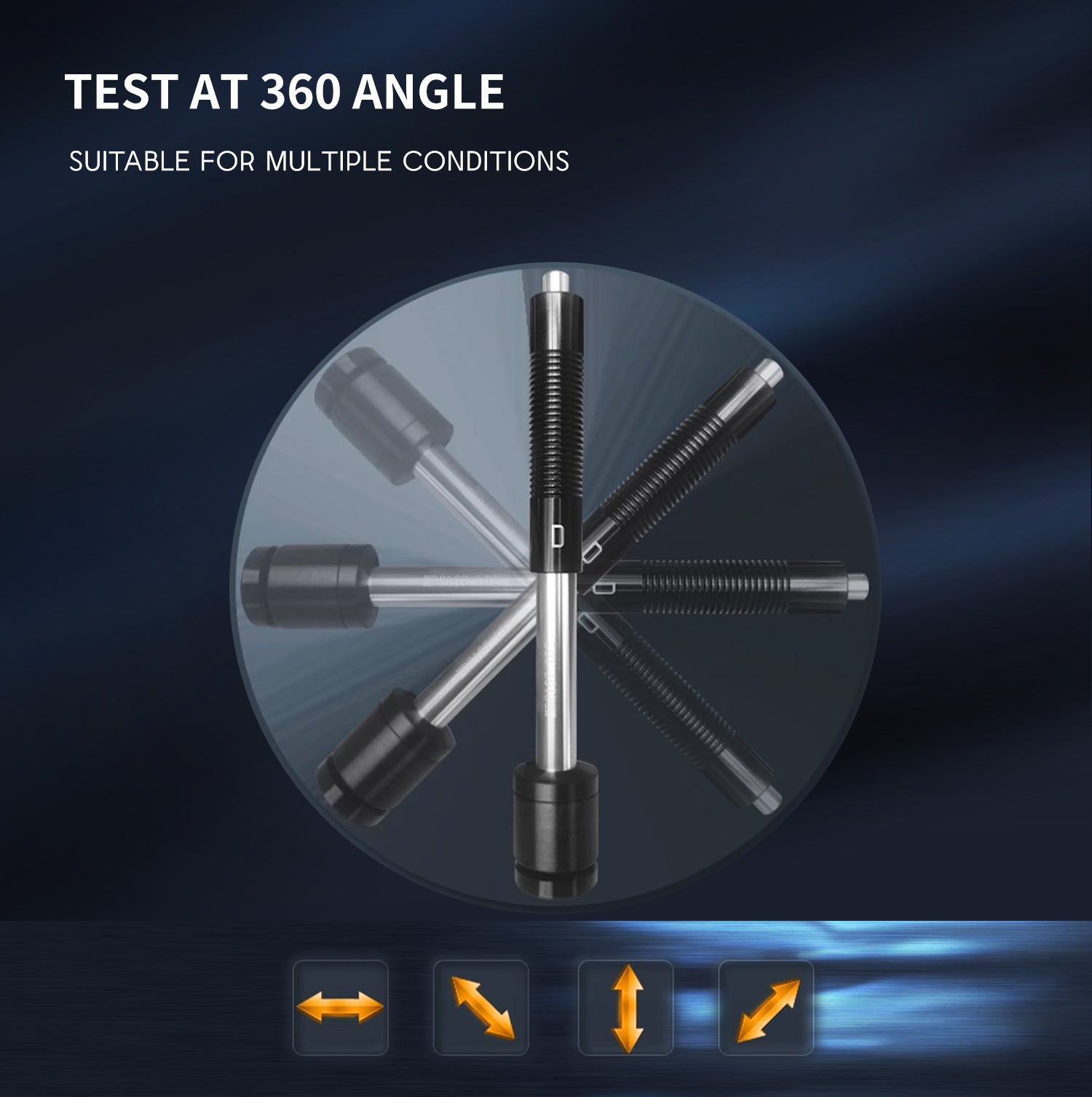

| Measuring Direction | 360° |

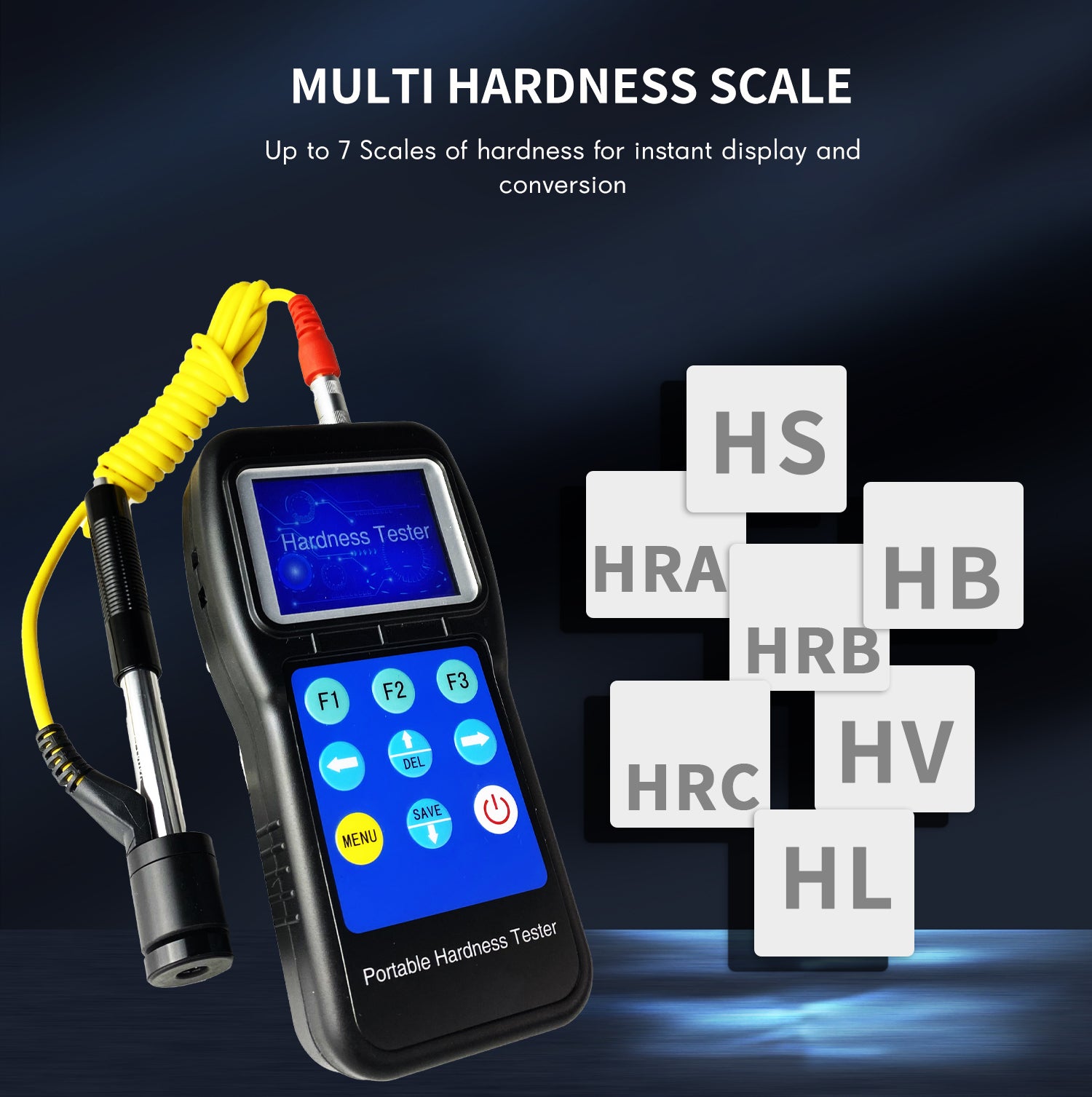

| Hardness Scale | HL, HB, HRB, HRC, HRA, HV, HS |

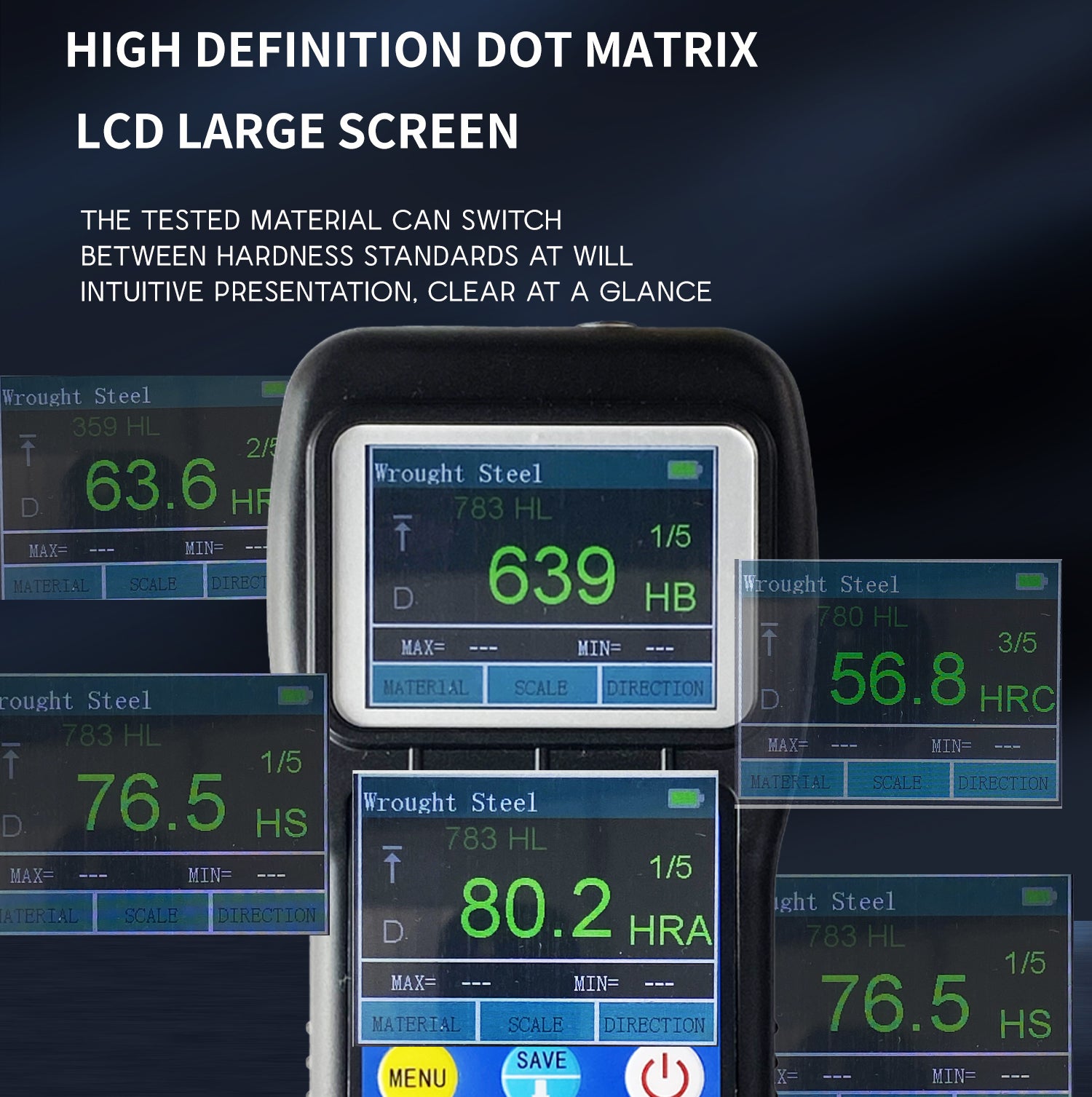

| Display | 320x240 true color TFT screen |
| Data Memory | Max 600 groups (relative to impact times 1~32 adjustable) |
| Power | Rechargeable li-battery |
| Working Temperature | -20°C~55°C |
| Size | 152x76x33mm |
| Weight | 0.3kg |
| MAIN FEATURE |
*Easy to operate;
*Test at any angle, even upside down;
*Has a starting value calibration function, ensure the data is applicable and accurate in different codes and standards;
*Seven impact devices are available for special application. Automatically identify the type of impact devices;
*User calibration function;
*Battery information indicates the rest capacity of the battery and the charge status;
*Has the function of automatic alarm. Pre-set tolerance limit, beyond the range has automatic alarm, especially suitable for batch testing;
*Menu operation, information rich, intuitive, the realization of arbitrary switching material and hardness of system's key type, simple and convenient;
*Excellent after-sale service system for high quality products-two years warranty and all life maintenance.
*Narrow space also available to use;
*Support OEM Service;
*High price performance.
| STANDARD DELIVERY |
| ITEM | QTY |
| KH190 Host | 1 PC |
| Standard D Impact Device | 1 PC |
| Standard Calibration Block | 1 PC |
| Standard Support Ring | 1 PC |
| Brush | 1 PC |
| USB Cable | 1 PC |

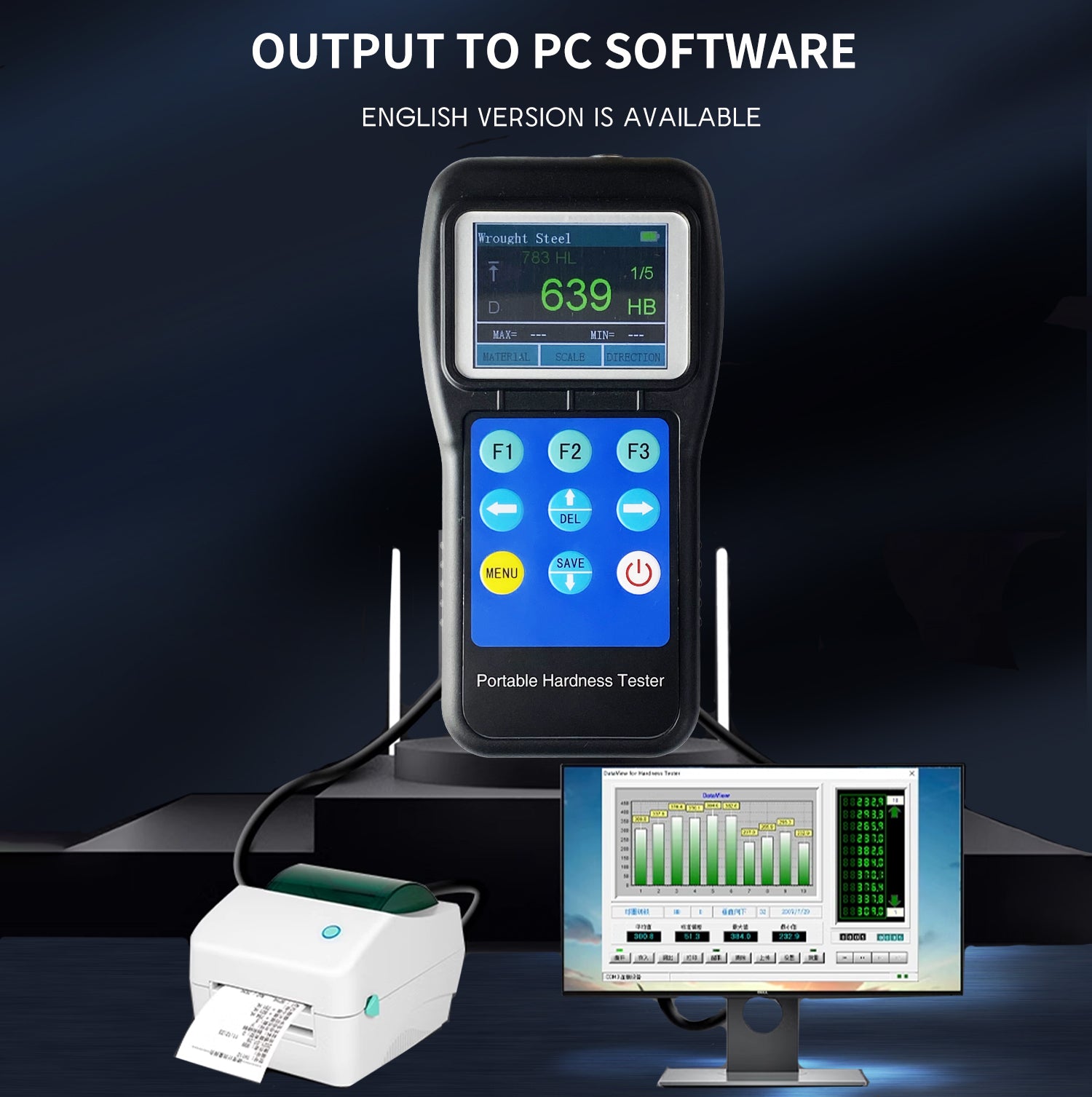

| PC Software | 1 PC |
| User Manual | 1 PC |
| Instrument Case | 1 PC |
| Warranty | 2 Years |
| RELATED OPTIONAL ITEMS |
| Type of Impact Device | DC(D)/DL | D+15 | C | G | E |
| Impacting energy Mass of impact body |
11mJ 5.5g/7.2g |
11mJ 7.8g |
2.7mJ 3.0g |
90mJ 20.0g |
11mJ 5.5g |
| Test tip hardness: Dia. Test tip: Material of test tip: |
1600HV 3mm Tungsten carbide |
1600HV 3mm Tungsten carbide |
1600HV 3mm Tungsten carbide |
1600HV 5mm Tungsten carbide |
5000HV 3mm synthetic diamond |
| Impact device diameter: Impact device length: Impact device weight: |
20mm 86(147)/75mm 50g |
20mm 162mm 80g |
20mm 141mm 75g |
30mm 254mm 250g |
20mm 155mm 80g |
| Max. hardness of sample | 940HV | 940HV | 1000HV | 650HB | 1200HV |
| Mean roughness value of sample surface Ra: | 1.6μm | 1.6μm | 0.4μm | 6.3μm | 1.6μm |
| Min. weight of sample: Measure directly with stand Need coupling tightly |
>5kg 2～5kg 0.05～2kg |
>5kg 2～5kg 0.05～2kg |
>1.5kg 0.5～1.5kg 0.02～0.5kg |
>15kg 5～15kg 0.5～5kg |
>5kg 2～5kg 0.05～2kg |
| Min. thickness of sample Coupling tightly: Min. layer thickness for surface hardening: |
5mm ≥0.8mm |
5mm ≥0.8mm |
1mm ≥0.2mm |
10mm ≥1.2mm |
5mm ≥0.8mm |
| Size of tip indentation Hardness 300HV Indentation diameter: Depth of indentation: |
0.54mm 24μm |
0.54mm 24μm |
0.38mm 12μm |
1.03mm 53μm |
0.54mm 24μm |
| Hardness 600HV Indentation diameter: Depth of indentation |
0.54mm 17μm |
0.54mm 17μm |
0.32mm 8μm |
0.90mm 41μm |
0.54mm 17μm |
| Hardness 800HV Indentation diameter: Depth of indentation |
0.35mm 10μm |
0.35mm 10μm |
0.35mm 7μm |
-- -- |
0.35mm 10μm |
| Application | DC type used to measuring hole or inside face of cylinder, DL type used to measuring elongated narrow slot or hole, D type for routine measurements. |
Suitable for measuring surface of the trench or concave. | Suitable for measuring thin workpiece and harden surface. | Suitable for heavy or rough castings and forgings. | Suitable high hardness material. |
|
Standard Hardness Calibration Block With high accuracy standard hardness value, use for calibration of leeb hardness tester. |
|
Support Ring for Hardness Tester Suitable for difference measure situation, 12 pcs/ set |
|
Connecting Cable for Hardness Tester and Probe
|
|
Mini Thermal Printer External printer, connect by USB interface, suitable for Kairda models. |
|
Thermal Printing Paper Suitable for mini thermal printer and Kaidas’s tester with built-in printer |
