KCT300 Portable Coating Thickness Gauge with Metal Shell & Ruby Probe
Regular price
$259.00

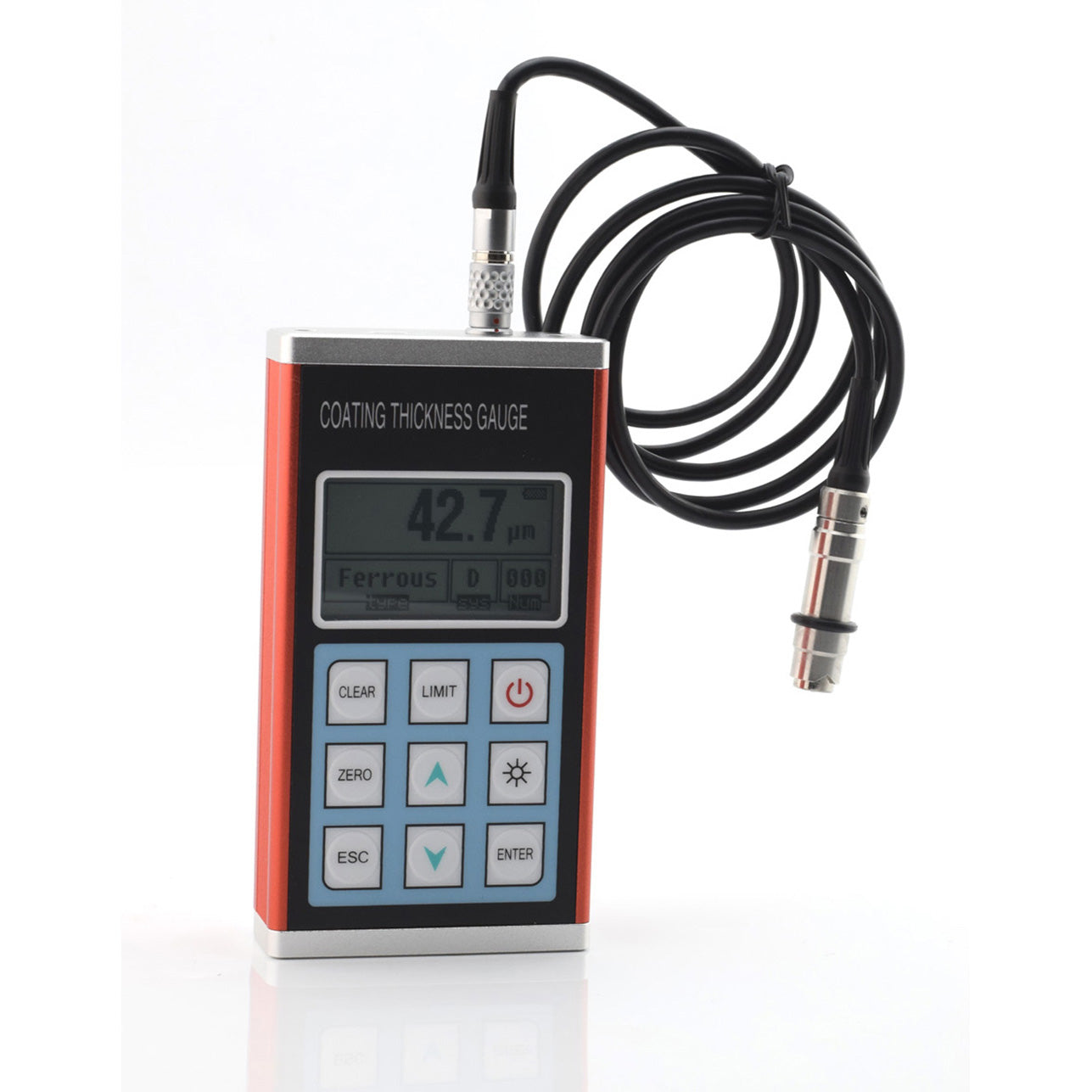

KCT300 Portable Coating Thickness Gauge
Need to check a coating without cutting into the finish? The KCT300 puts thickness readings in your hand, whether you are checking paint on steel or an insulating coating on a non-ferrous metal. Choose the probe for your substrate, place it on the surface and review the result on the backlit LCD.
Choose the right probe

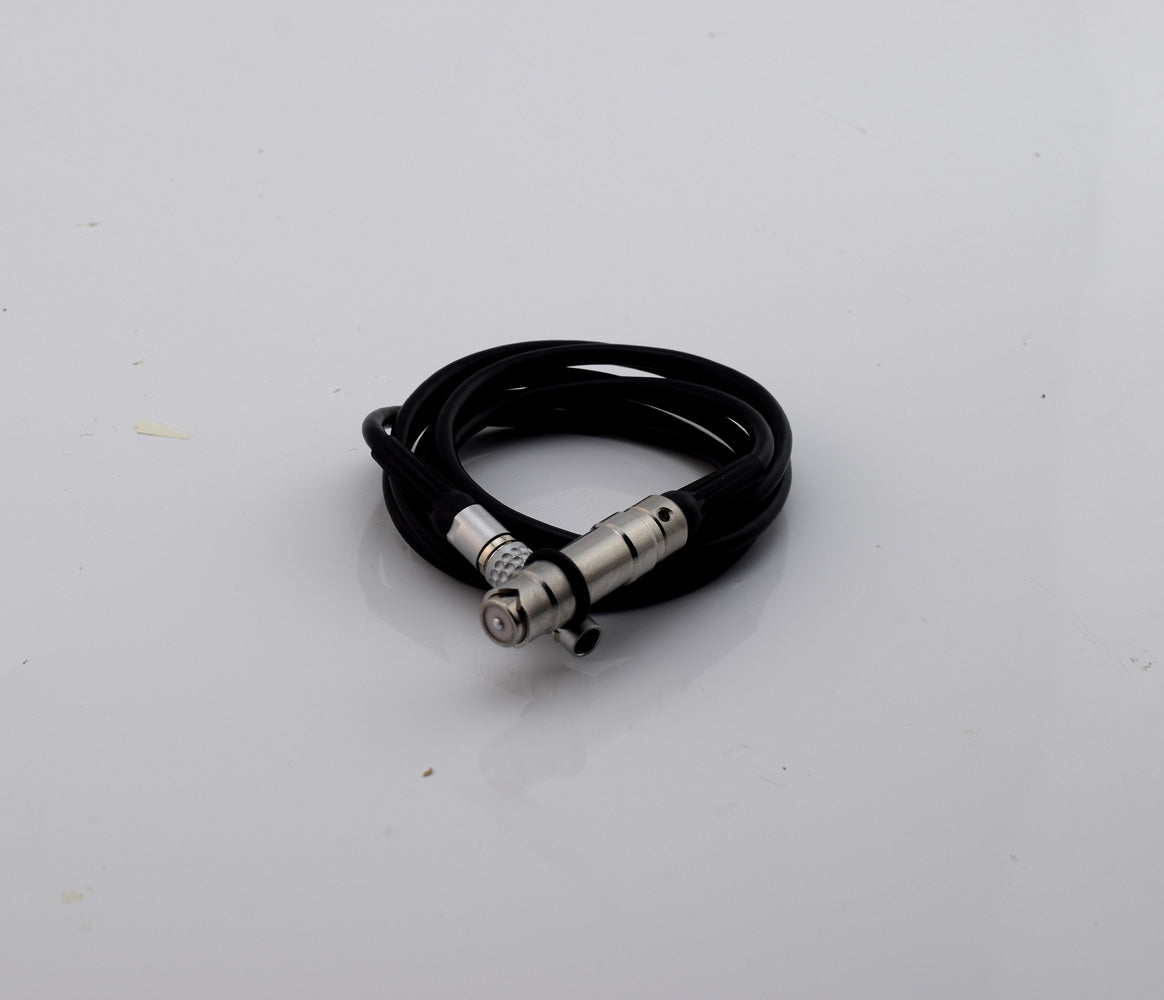

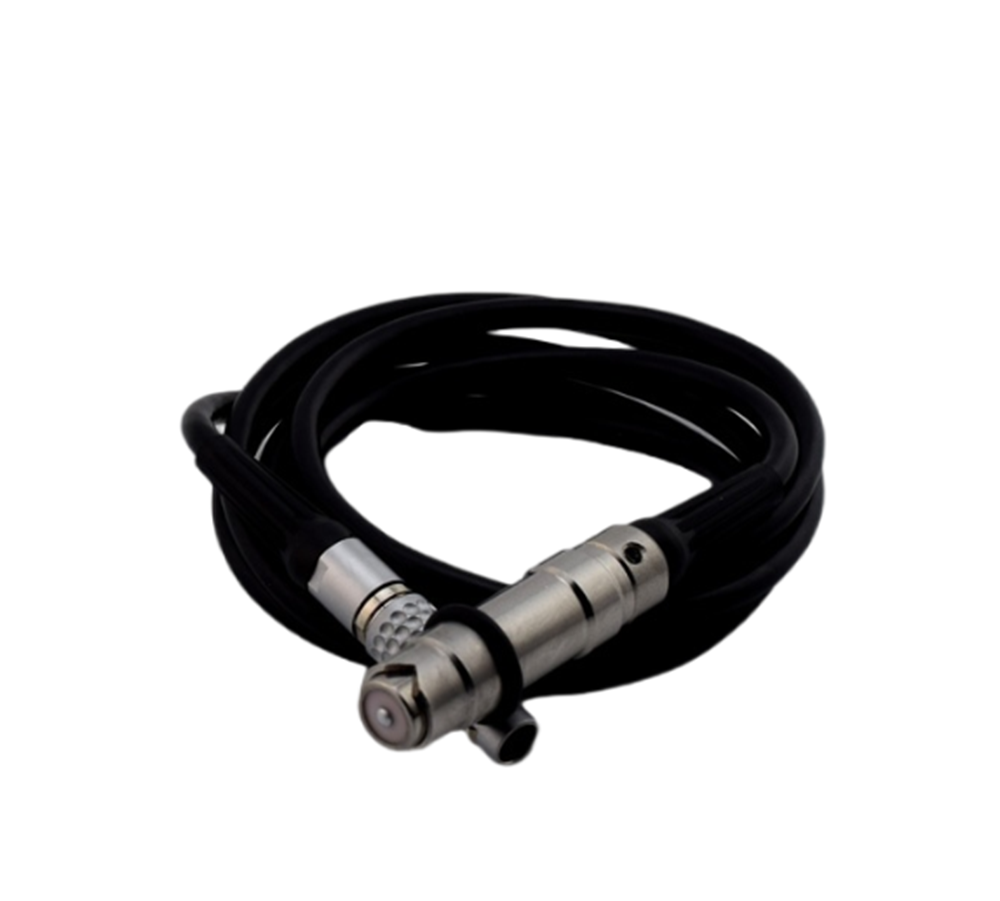

- F1 (ferrous): measures non-magnetic coatings such as paint, enamel or metal plating on magnetic substrates including steel. Range: 0–1,250 μm.

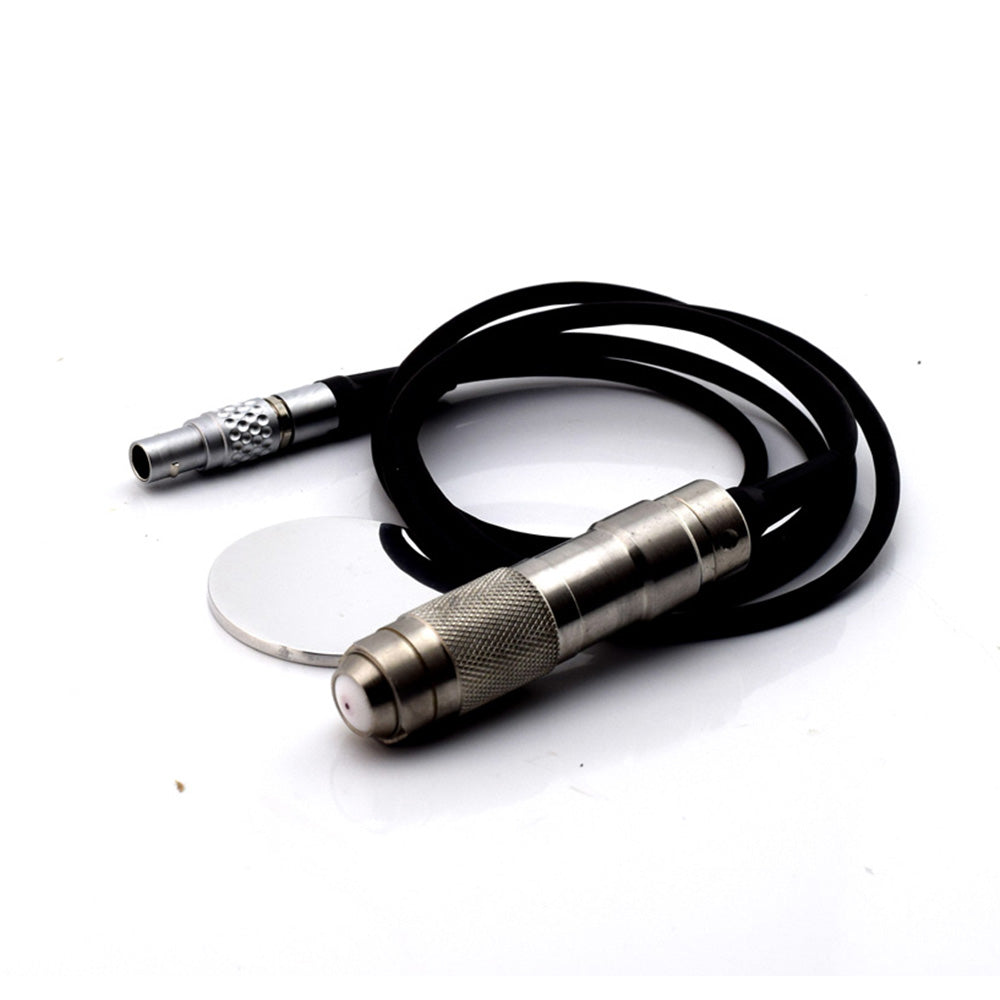

- N1 (non-ferrous): measures non-conductive coatings such as paint, plastic or anodic oxide on conductive, non-magnetic substrates such as aluminum or brass. Range: 0–1,250 μm.

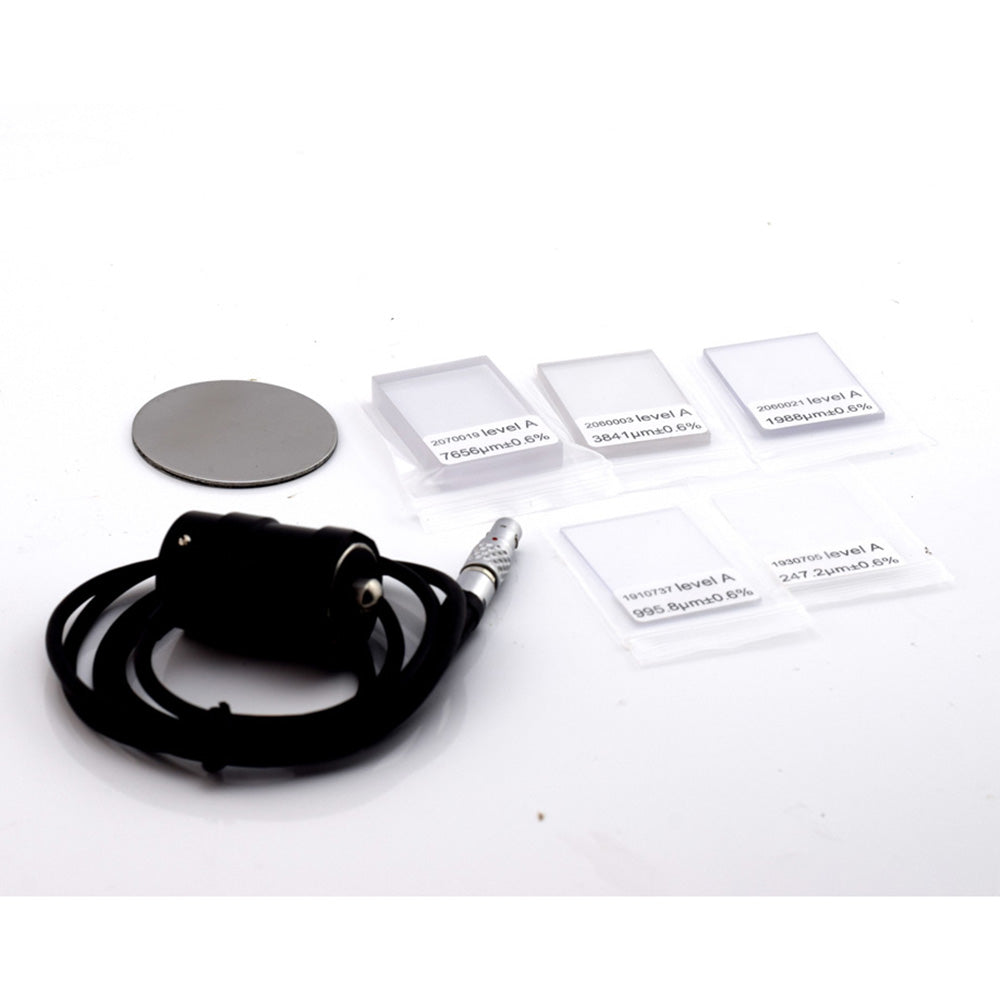

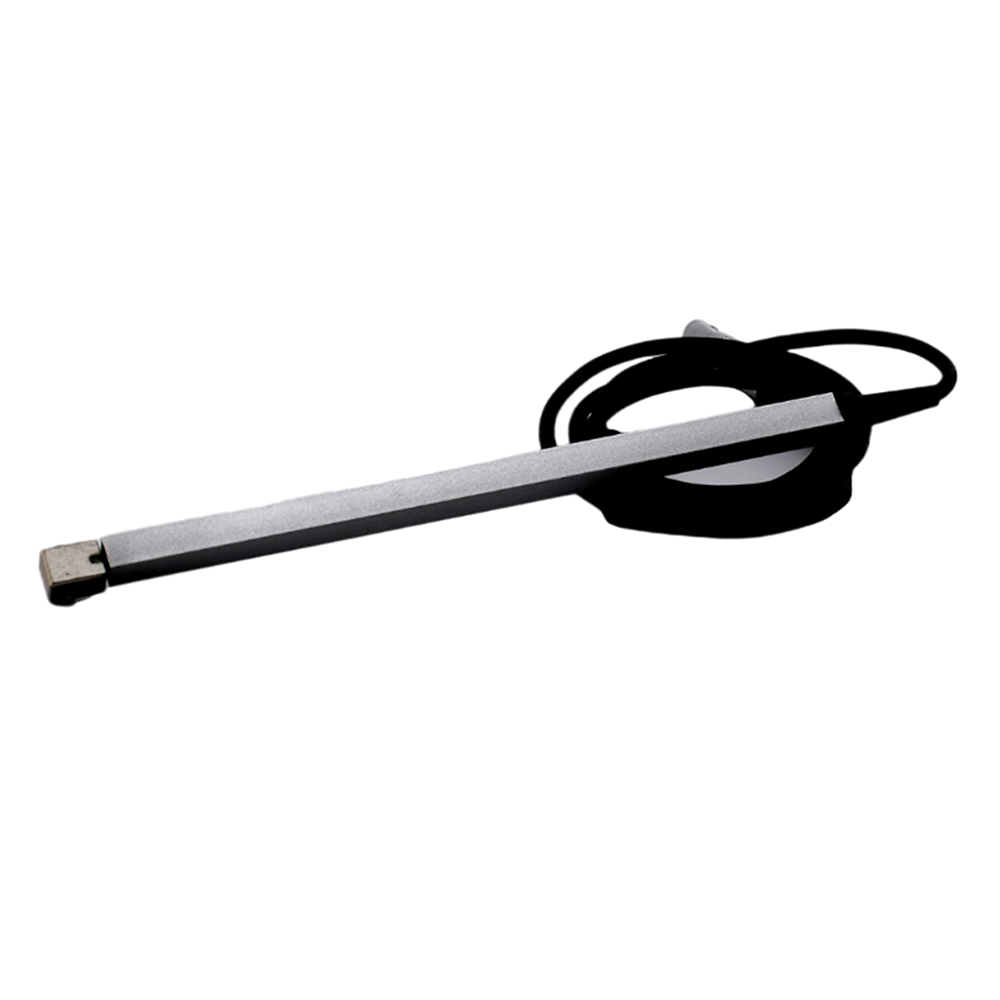

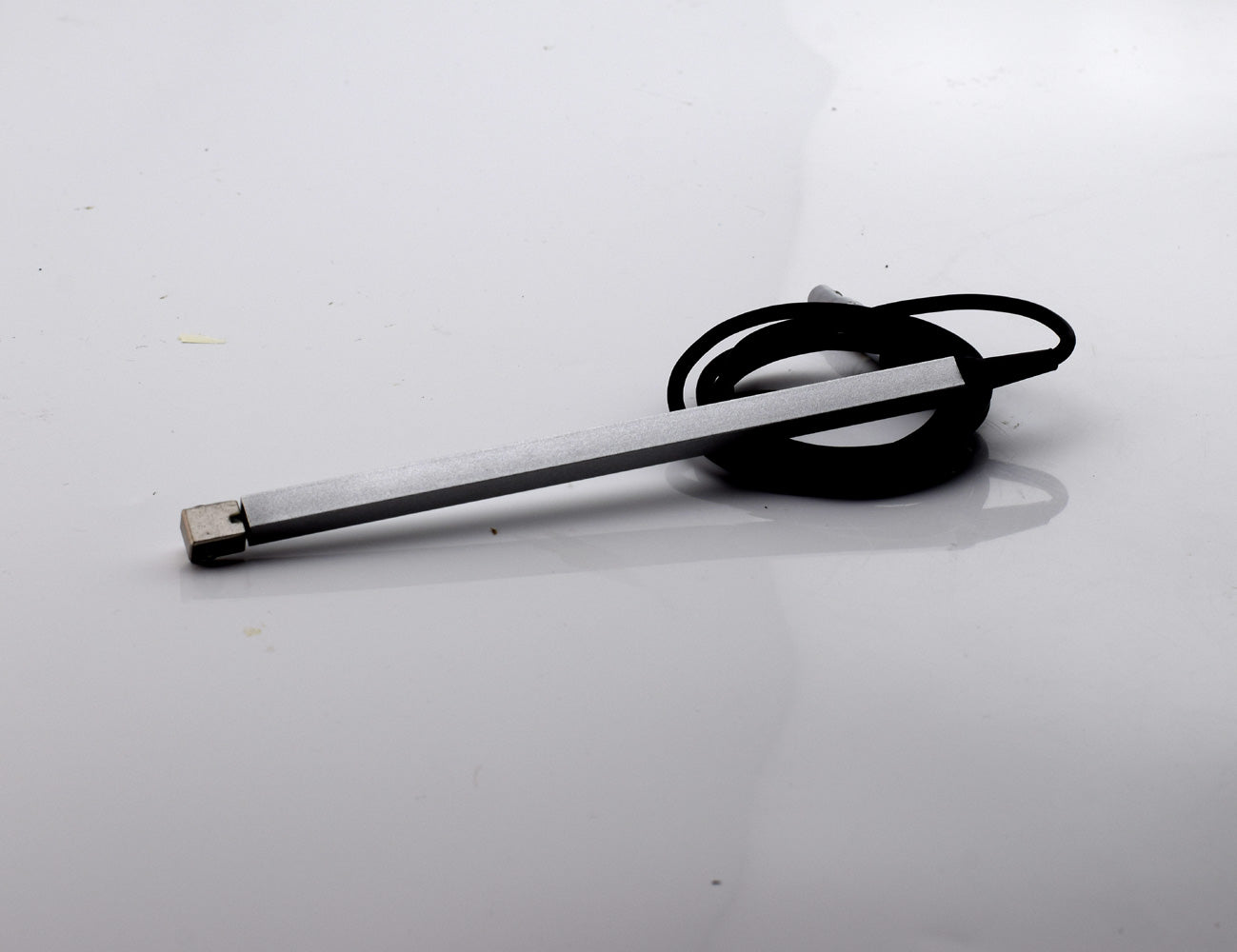

One F1 or N1 probe is supplied, depending on the configuration selected. Check your selected probe before ordering; measuring capability depends on the probe fitted. Other compatible probes are optional, including F10 for up to 10,000 μm on ferrous substrates and F3 or N3 for up to 3,000 μm on the corresponding substrate.
Built for everyday measurements
- Metal housing and a wear-resistant ruby probe tip for repeated use.

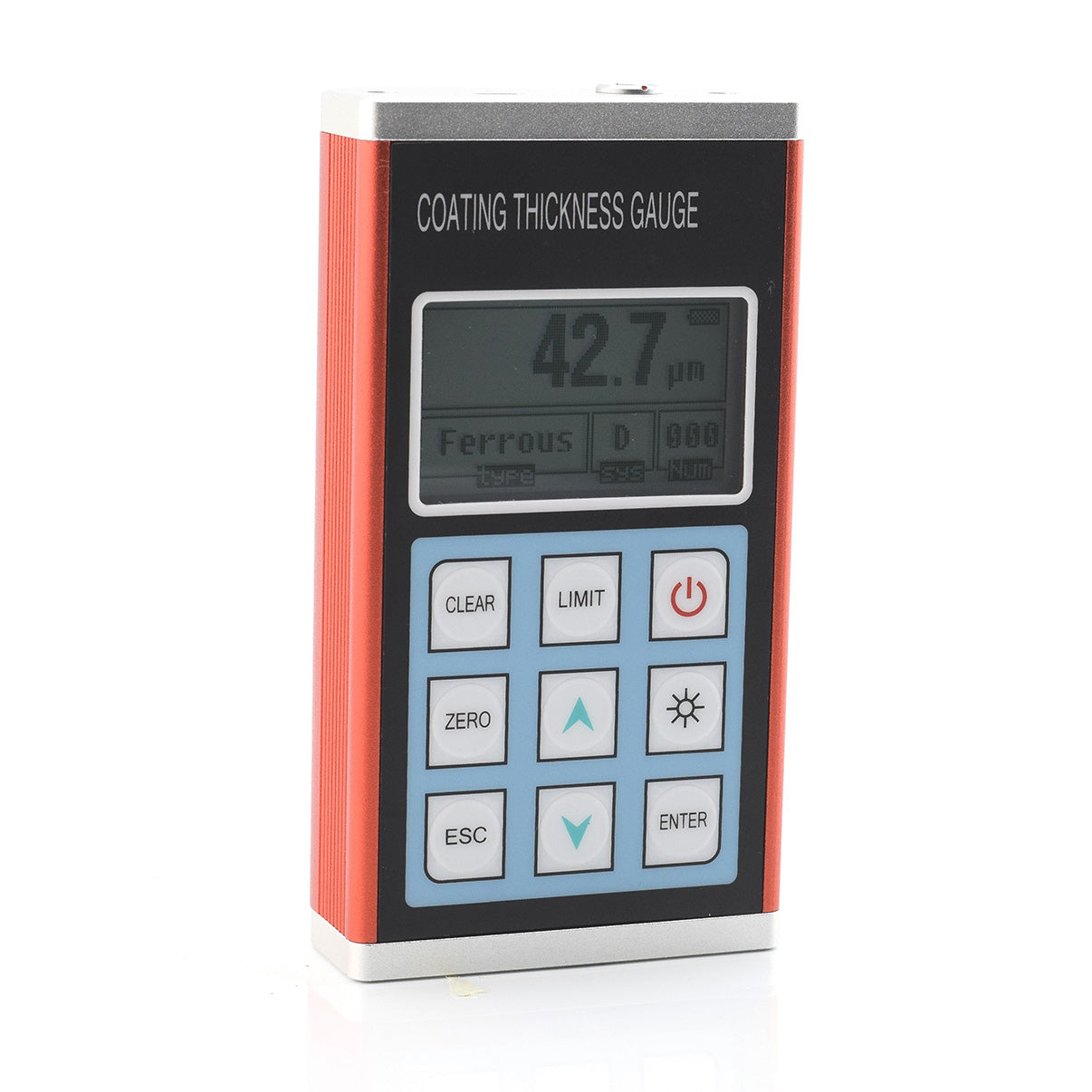

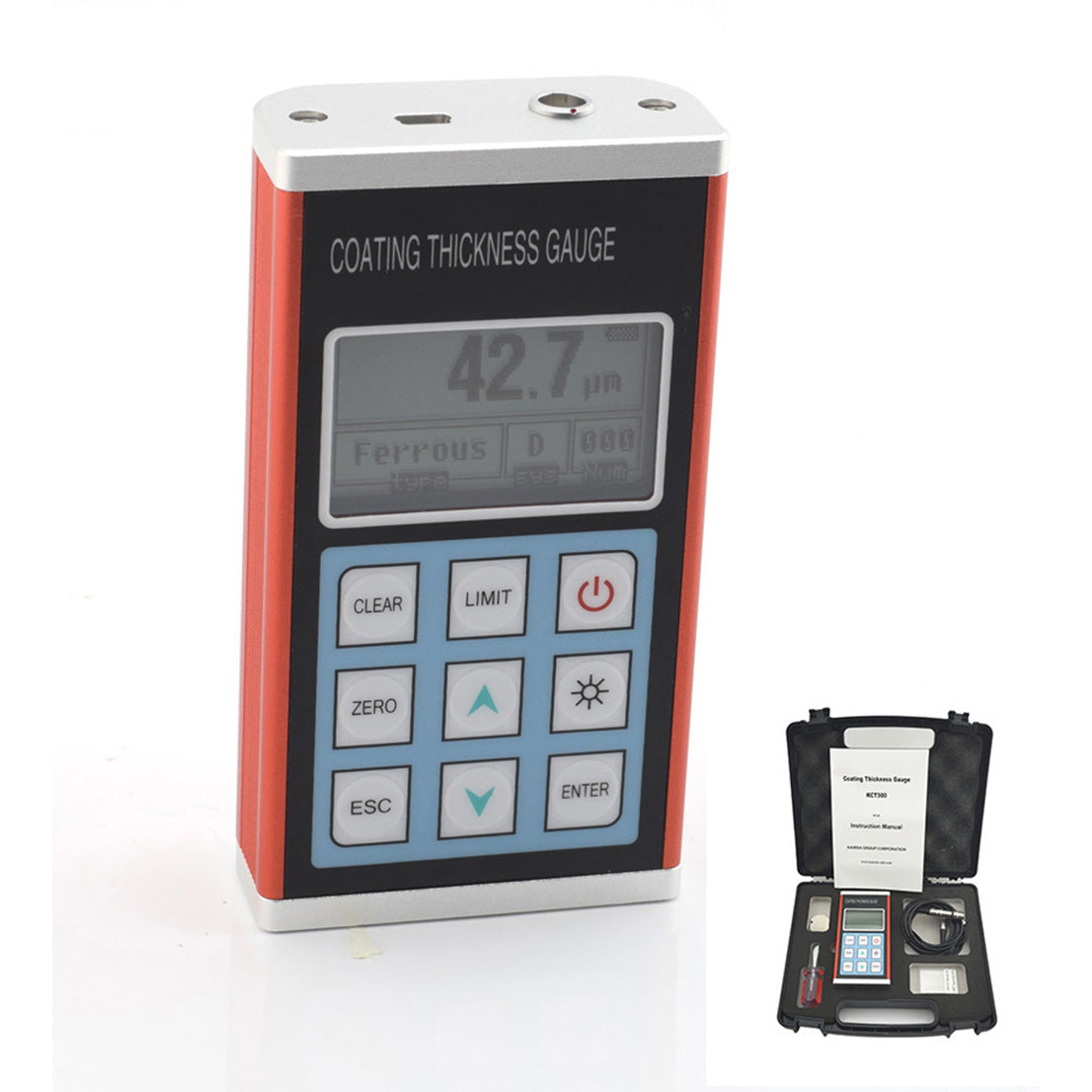

- 128 × 64 backlit LCD, with readings in μm or mil.
- Stores measurements in 5 files of up to 99 values each; view mean, maximum, minimum, count and standard deviation.
- Set a limit alarm to flag readings outside your chosen range.
- Automatic probe matching helps when switching between compatible probe types.
- Optional PC software supports data transfer, analysis and printing; it is not listed in the standard package.
Technical details
- Standard measurement range: 0–1,250 μm with F1 or N1 probe.
- Resolution: 0.1 μm / 1 μm.
- Stated accuracy: ±(2% of reading + 1 μm).
- Measurement methods: magnetic induction or eddy current, depending on probe and substrate.
- Operating temperature: −10°C to 50°C; storage temperature: −30°C to 70°C.
- Power: 2 AA batteries.
- Size and weight: 125 × 67 × 31 mm; approximately 340 g.

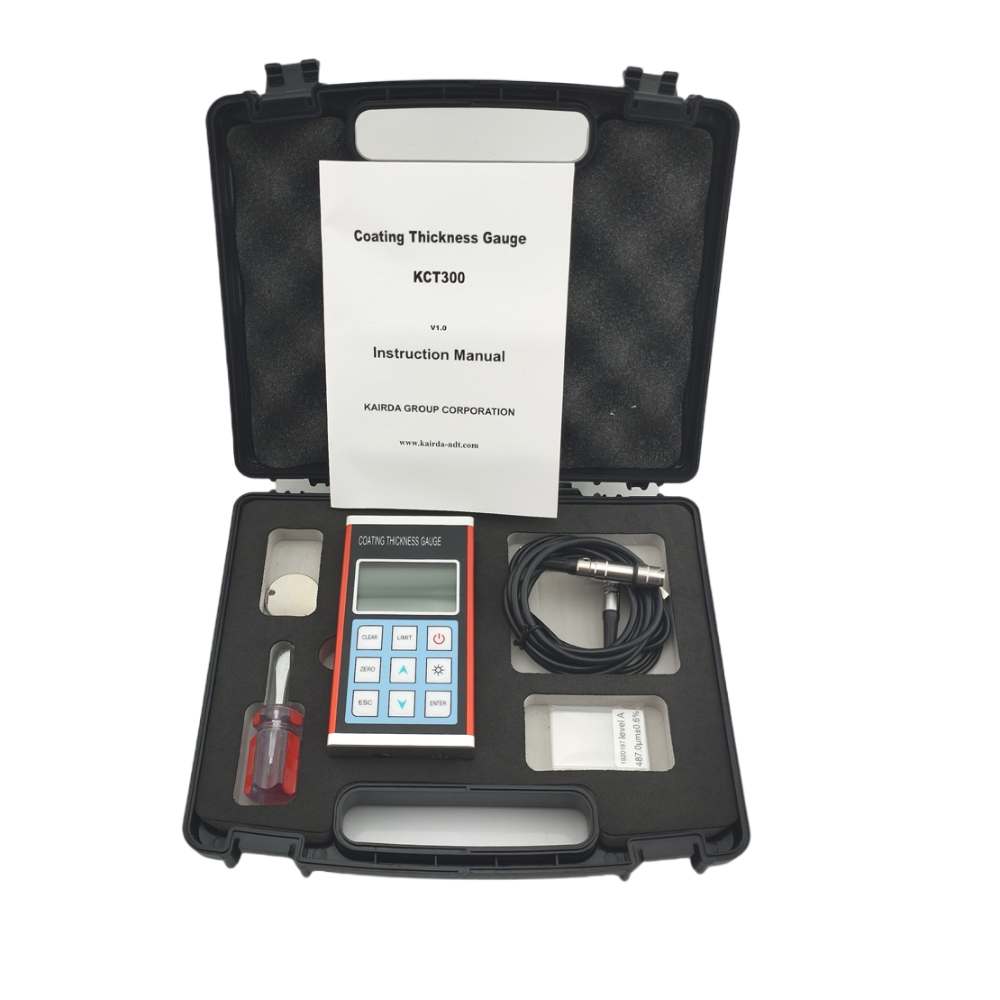

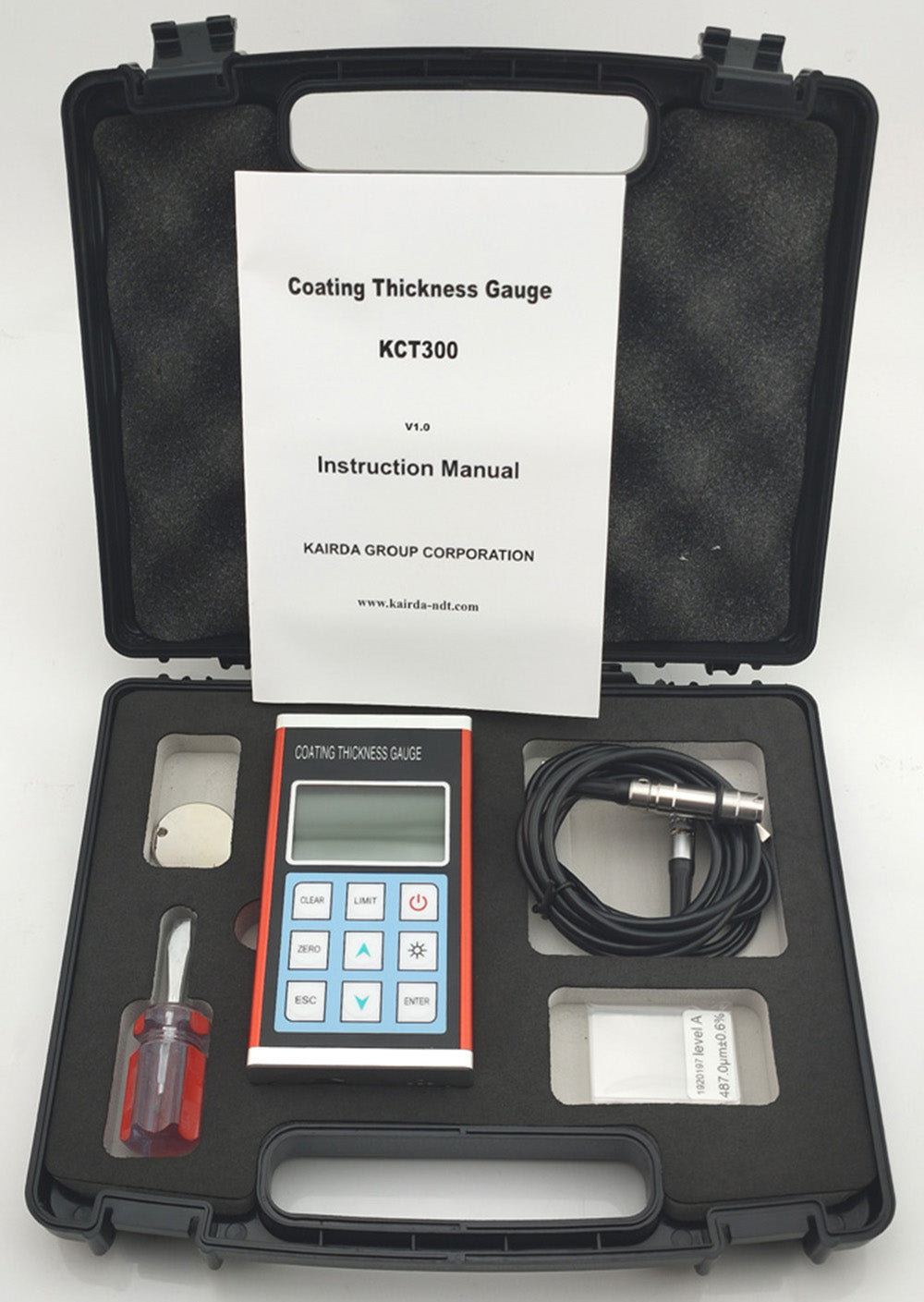

Standard package
KCT300 main unit, one selected F1 or N1 probe, calibration pieces, one matching Fe or NFe substrate, user manual and instrument case. Listed warranty: 2 years. Additional probes and large-range calibration pieces are available separately.
