KT330 Metal Shell Ultrasonic Thickness Gauge with USB Data Transfer

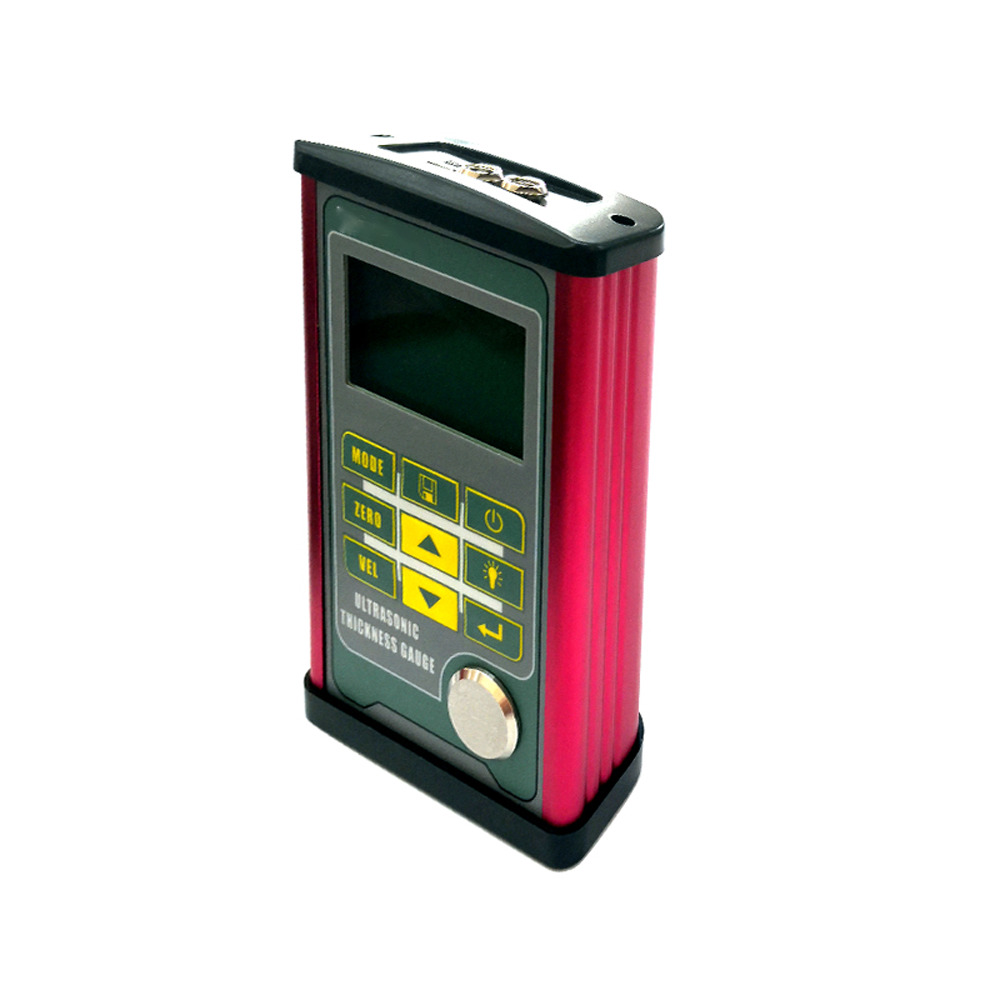

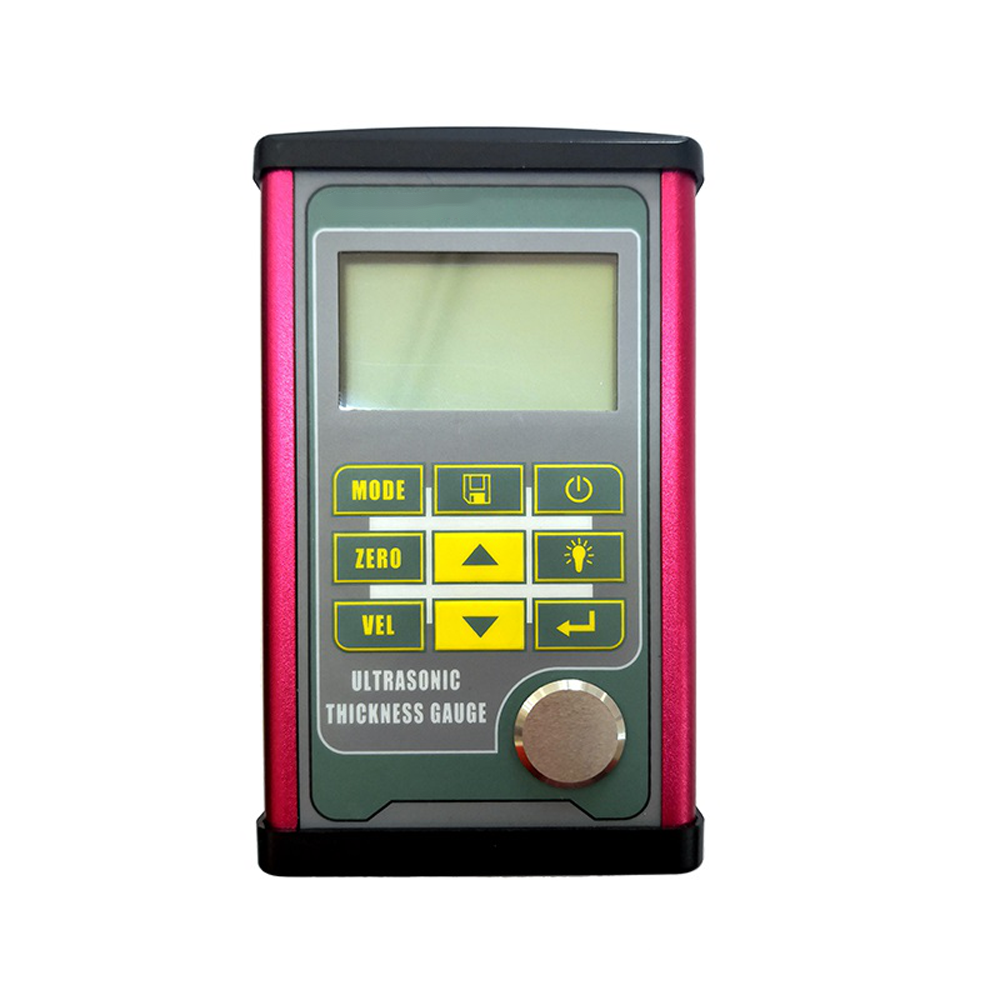

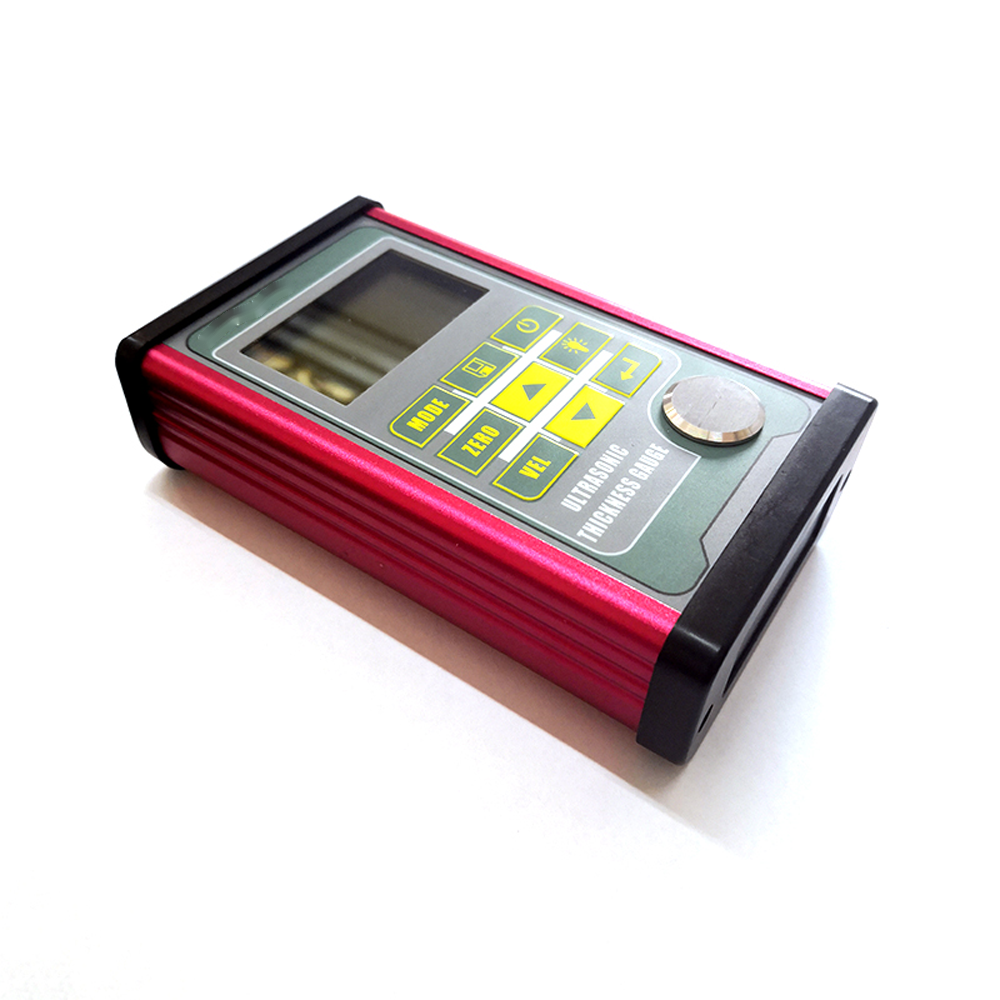

KT330 Metal-Shell Ultrasonic Thickness Gauge

Check the thickness of a pipe, casting or fabricated component without cutting into it. The KT330 pairs a compact metal housing with a backlit display and USB data port, so you can take readings at the workpiece and keep measurement records for later review. It is intended for materials that conduct ultrasound, including metals, plastics, ceramics, glass and fiberglass.

Ready for everyday thickness checks

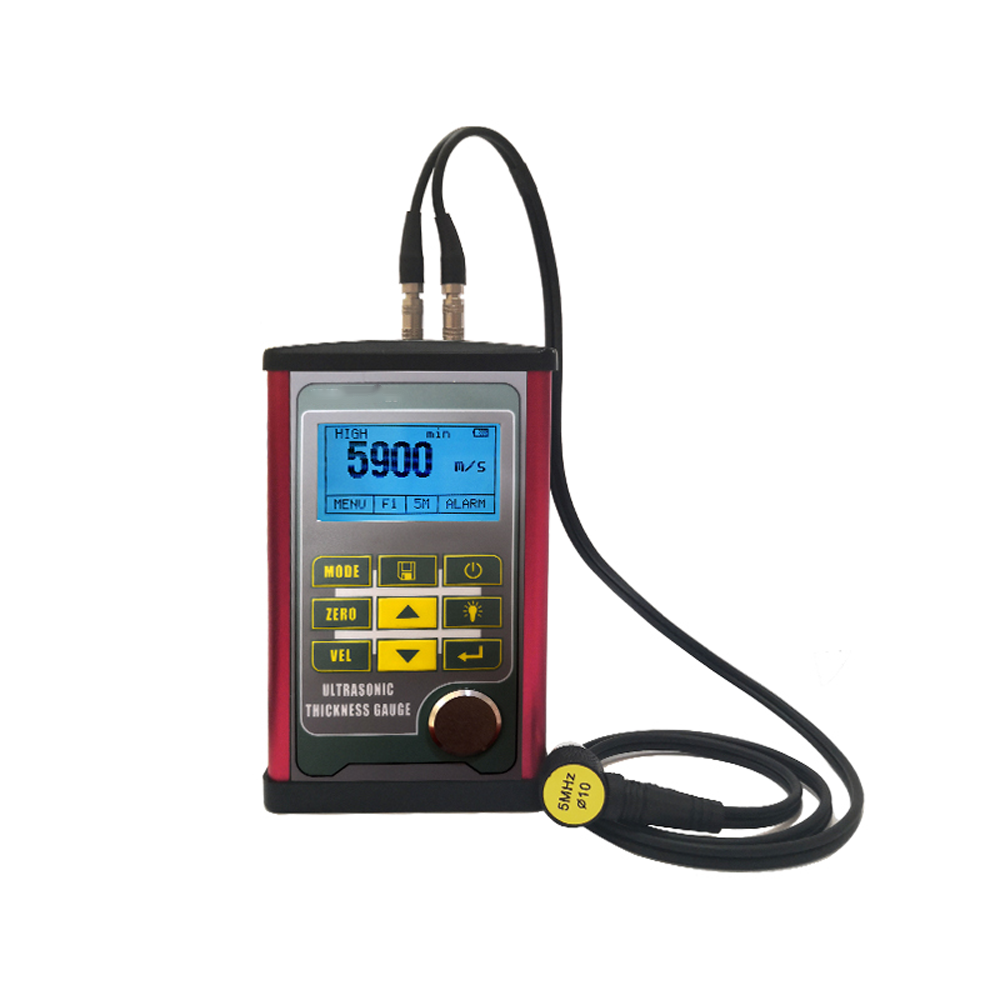

• Use the included probe: the standard No5 probe has a listed measuring range of 1.2–230 mm. The gauge's broader 0.75–300 mm range depends on using a suitable probe.
• Calibrate for your material: probe-zero and two-point calibration, plus sound-velocity measurement when a sample's thickness is known.
• Check contact at a glance: coupling-status alert helps identify when the probe is not properly coupled to the surface.
• Keep results organized: store five files of 100 readings each and five sound-velocity values; transfer data through the USB port.
• Work in lower light: LED backlight, battery indicator, automatic sleep and power-off.

Technical specifications

• Standard No5 probe range: 1.2–230 mm; overall probe-dependent range: 0.75–300 mm (0.03–11.8 in).
• Sound-velocity range: 1,000–9,999 m/s.
• Display resolution: 0.01 mm below 100 mm; 0.1 mm from 100 mm upward.
• Stated accuracy: ±(0.5% of thickness + 0.04 mm), dependent on material and conditions.
• Connection: USB.
• Power: two AA batteries; listed working time up to 100 hours with the backlight off.
• Operating temperature: −10°C to 60°C.
• Instrument size and weight: 138 × 83 × 39 mm; 238 g.

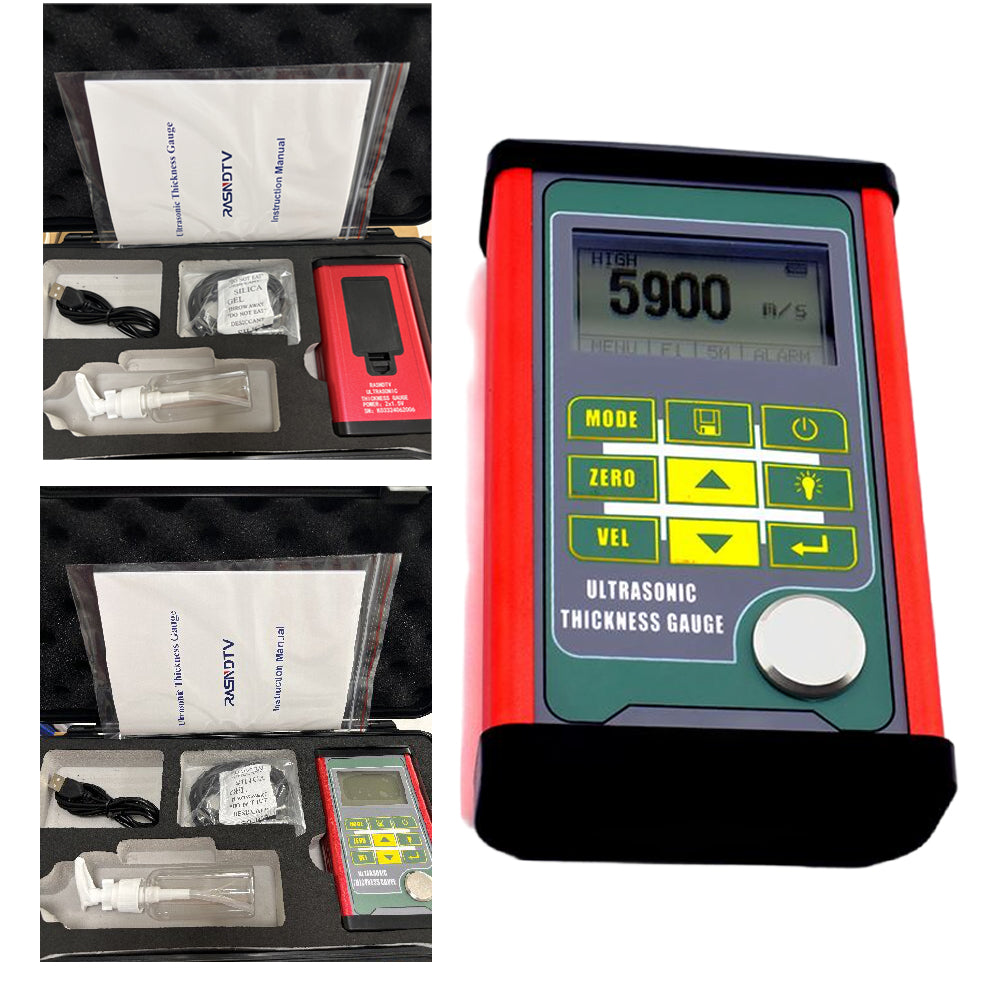

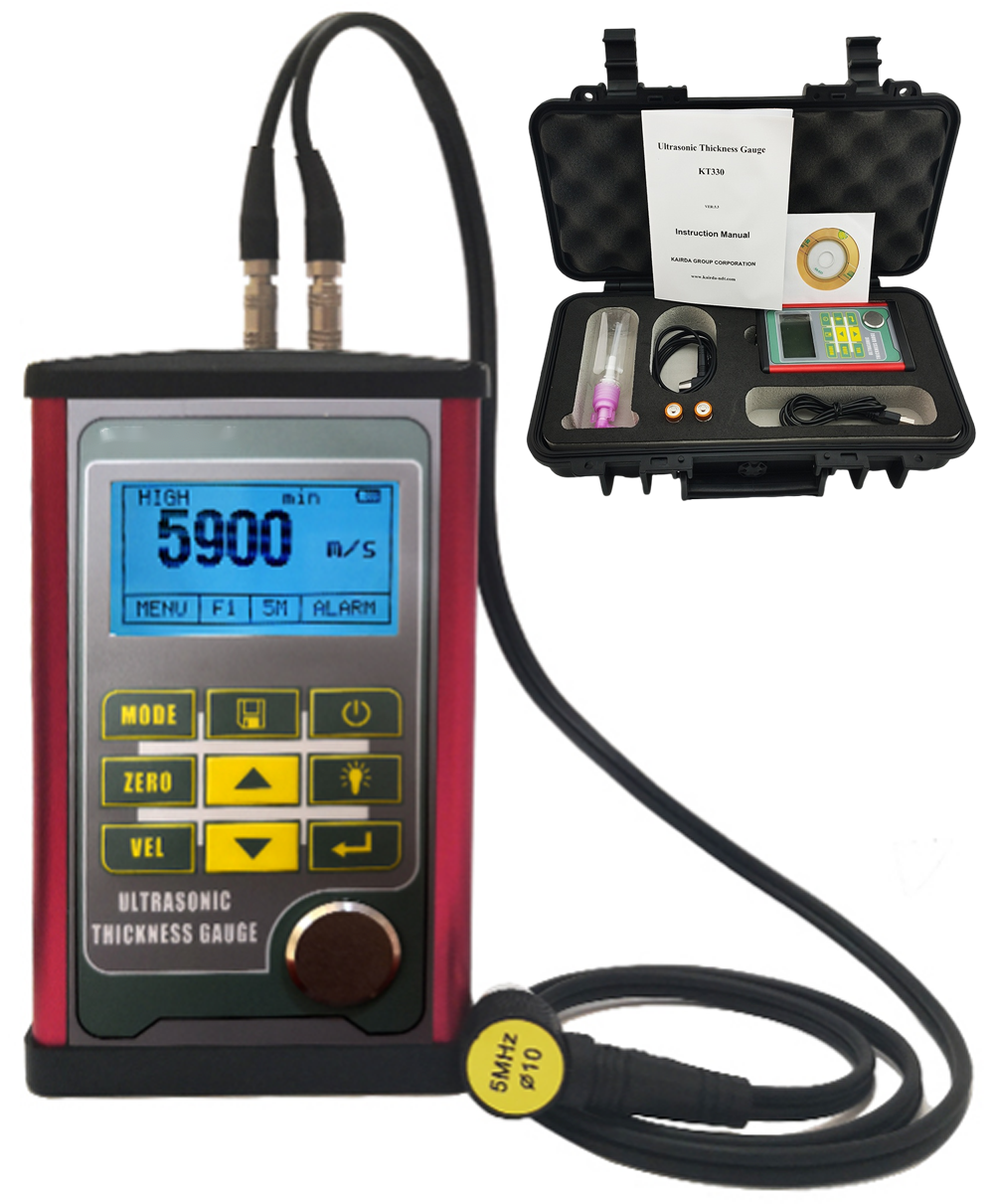

Standard package

KT330 main unit (1), No5 standard probe (1), built-in 4 mm calibration piece, couplant (1, subject to shipping restrictions), USB cable (1), user manual (1) and instrument case (1). The original listing states a one-year warranty. The couplant is marked for non-air transport, so its inclusion may depend on shipping method. PC software is not listed in this product's standard package.

Optional accessories

No2 casting probe (listed steel range 3–300 mm; casting range 3–40 mm), No7 thin-workpiece probe (0.75–80 mm), HT5 probe for up to 300°C and HT6 probe for up to 400°C (each listed at 3–200 mm), and high-temperature couplant are available as optional items. These are not included with the standard No5-probe package.
