KH220 Plus Metal Case Leeb Hardness Tester with TFT Display & USB Data Export
Regular price
$469.00

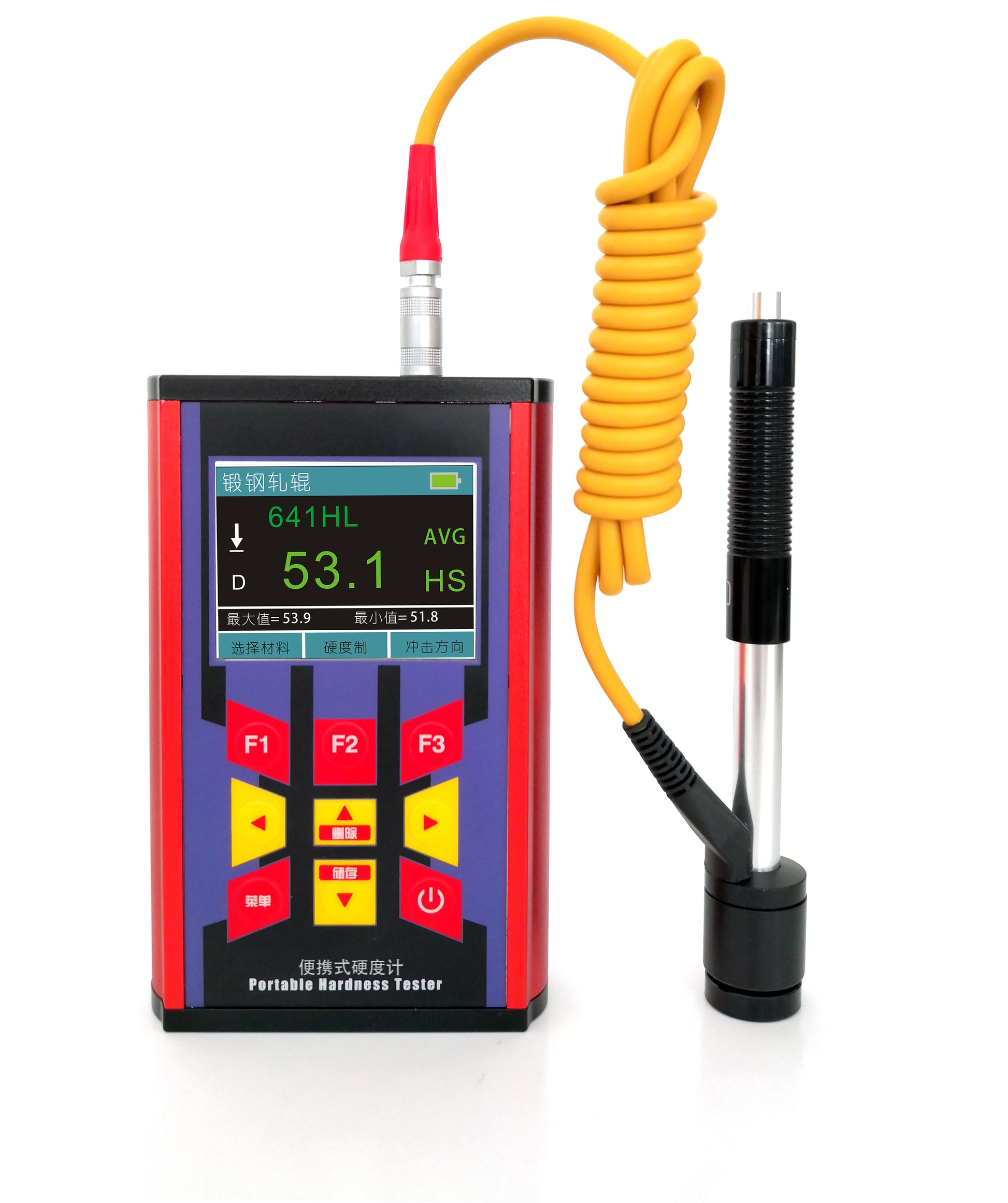

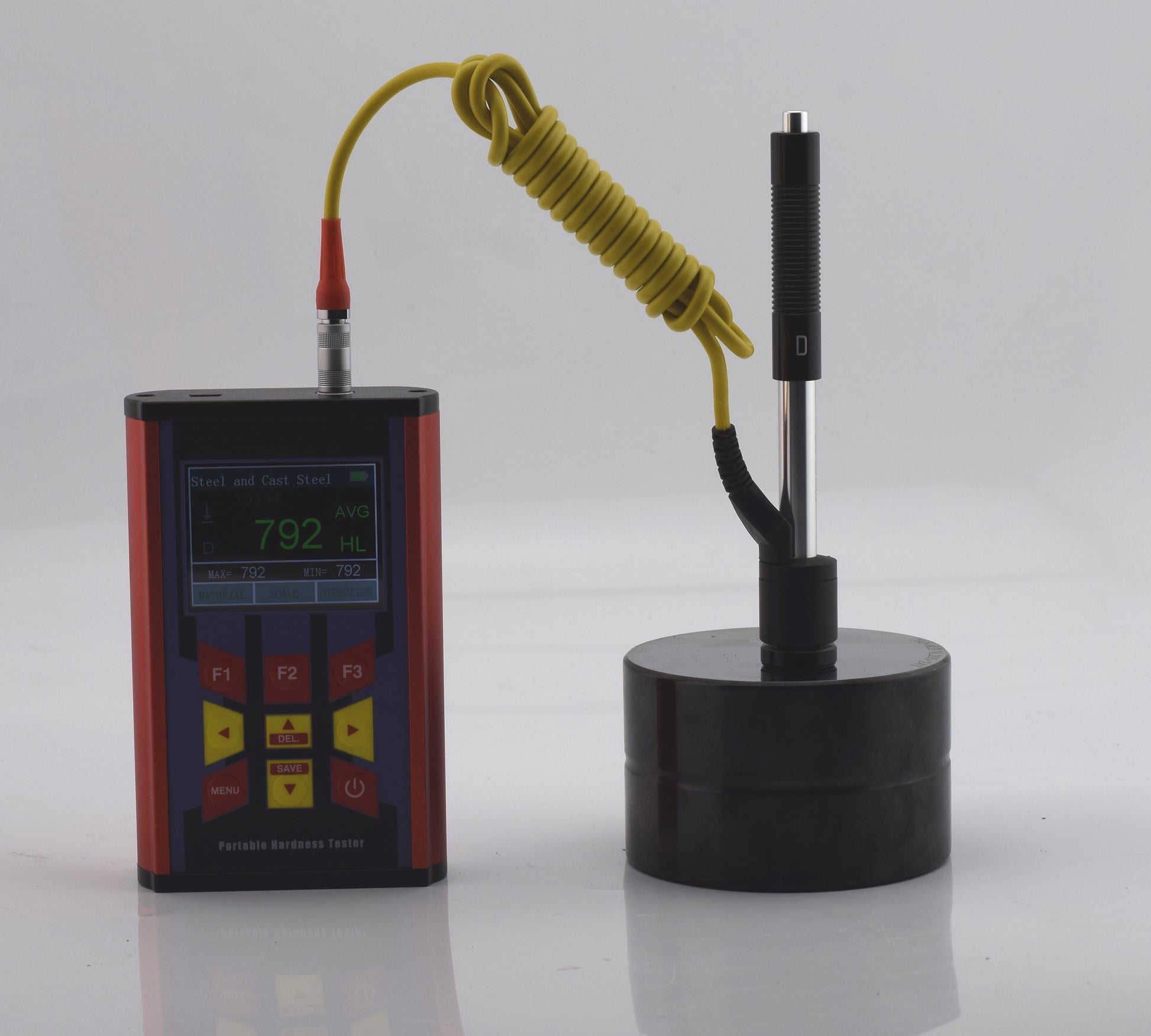

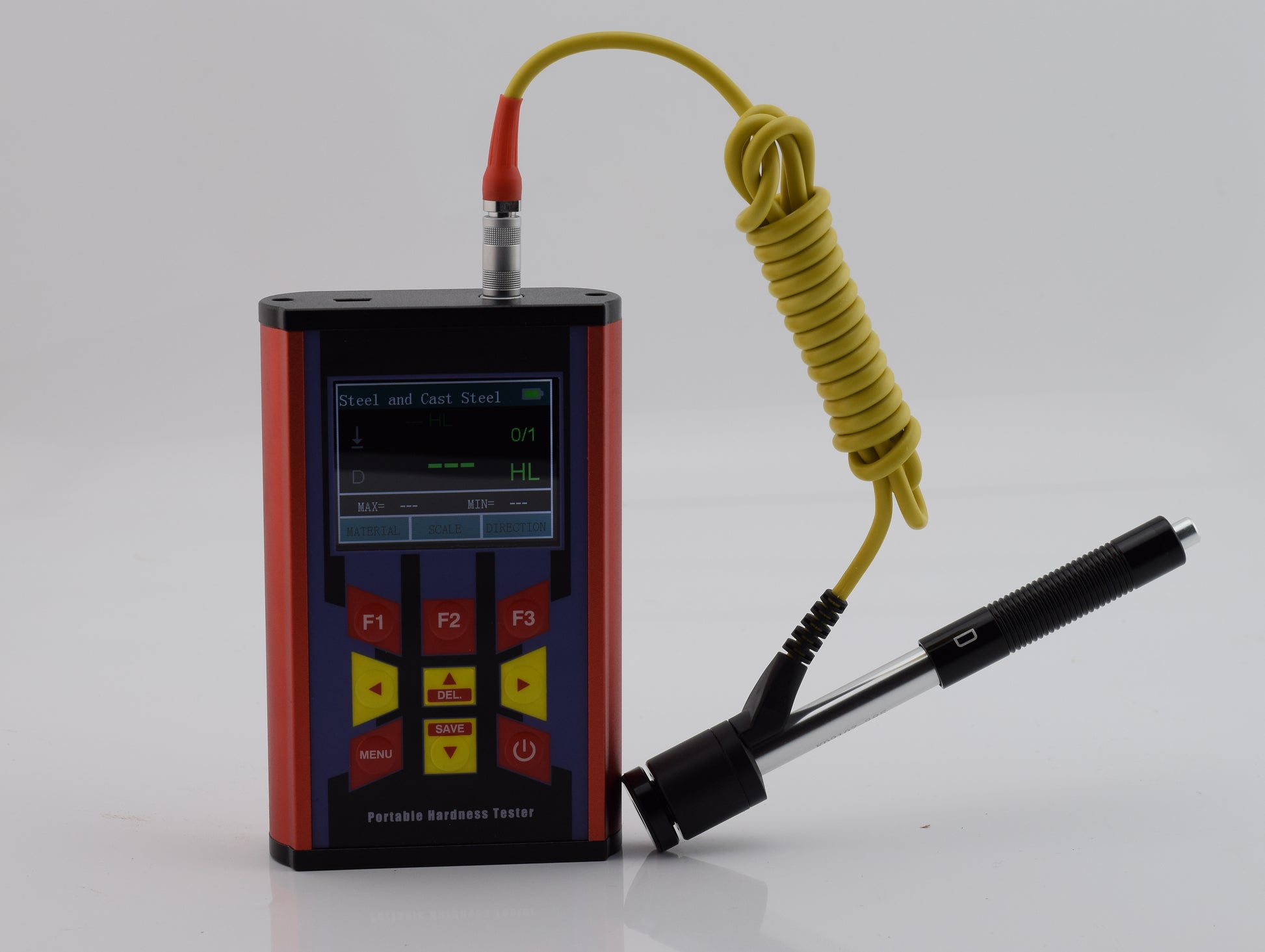

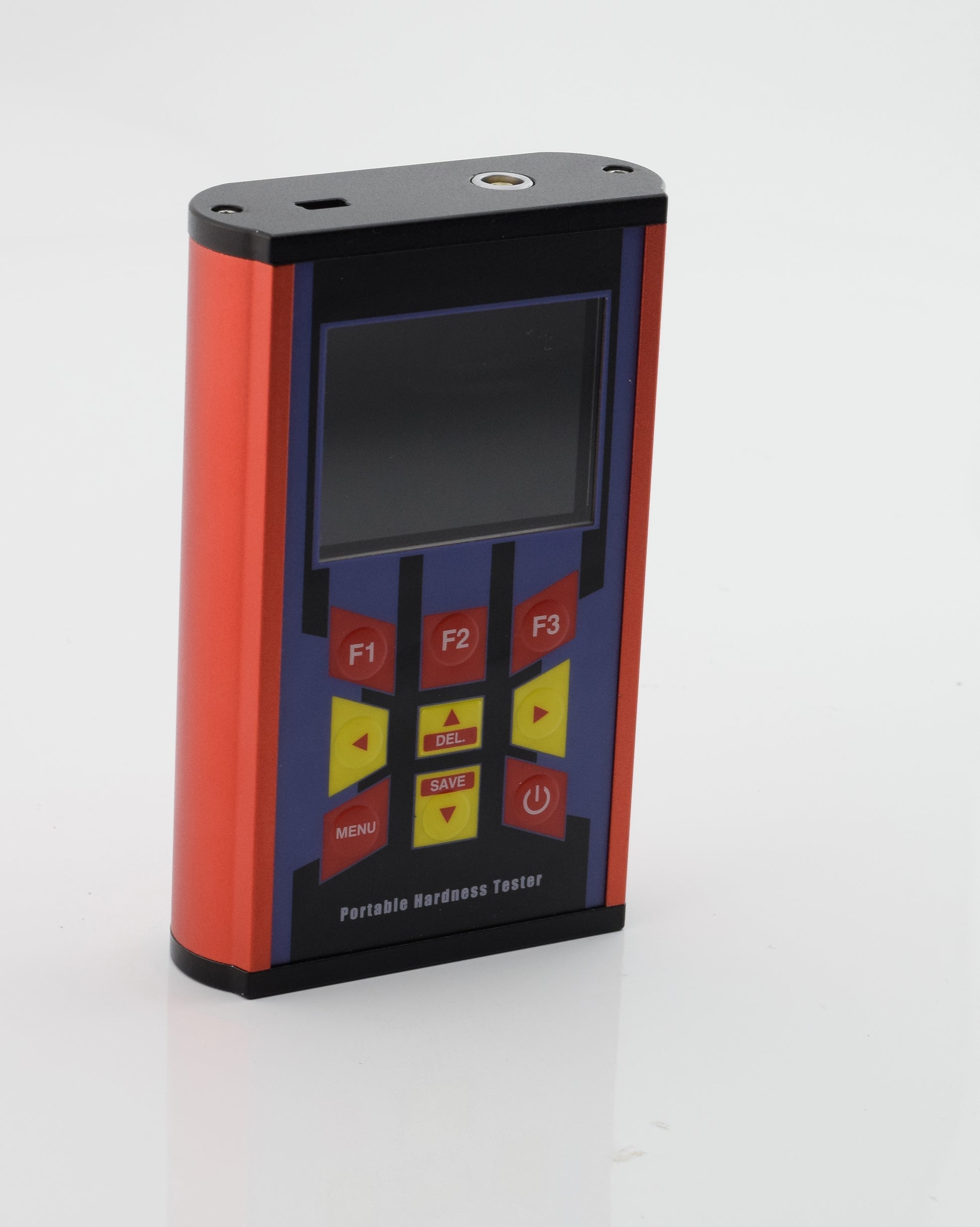

KH220 Plus Metal-Case Leeb Hardness Tester
Check hardness on a heavy workpiece without bringing it to a bench. The KH220 Plus is a portable Leeb hardness tester with a metal case, 320 × 240 color display and USB connection for transferring readings to a computer. From installed machinery to large forgings, take a measurement at the part, then save the result for your inspection record.
Built for flexible testing
- Test from any direction: 360° measurement supports parts that cannot be repositioned.
- See both values together: view the Leeb reading alongside the selected converted hardness scale on the color TFT screen.
- Keep a clear record: store up to 600 groups, depending on 1–32 impacts per group, including measurement details such as date, direction, material and scale.
- Set up for the material: choose from listed metal categories or configure up to five user-defined materials for specialized testing.
- Catch exceptions: preset a tolerance range for an automatic out-of-range alarm.
- Transfer data: USB 2.0 connection and supplied PC software support computer-based review.
The included D impact device covers routine applications. The tester recognizes compatible impact devices automatically or allows manual selection; specialized impact devices, roller-testing configurations and shaped support rings are optional.
Technical specifications
- Hardness scales: HL, HB, HRB, HRC, HRA, HV and HS; available conversions depend on material and impact device.
- Listed ranges: HLD 170–960; HRC 17.9–69.5; HB 19–683; HV 80–1042; HS 30.6–102.6; HRA 59.1–88; HRB 13.5–101.7.
- Stated indication error: ±6 HLD with the D impact device.
- Screen: 320 × 240 color TFT.
- Battery: rechargeable 3.7 V lithium battery; listed continuous operation up to 50 hours.
- Operating conditions: −20°C to 55°C, relative humidity ≤90%.
- Instrument size and weight: 130 × 83 × 32 mm; approximately 0.6 kg.
Standard package

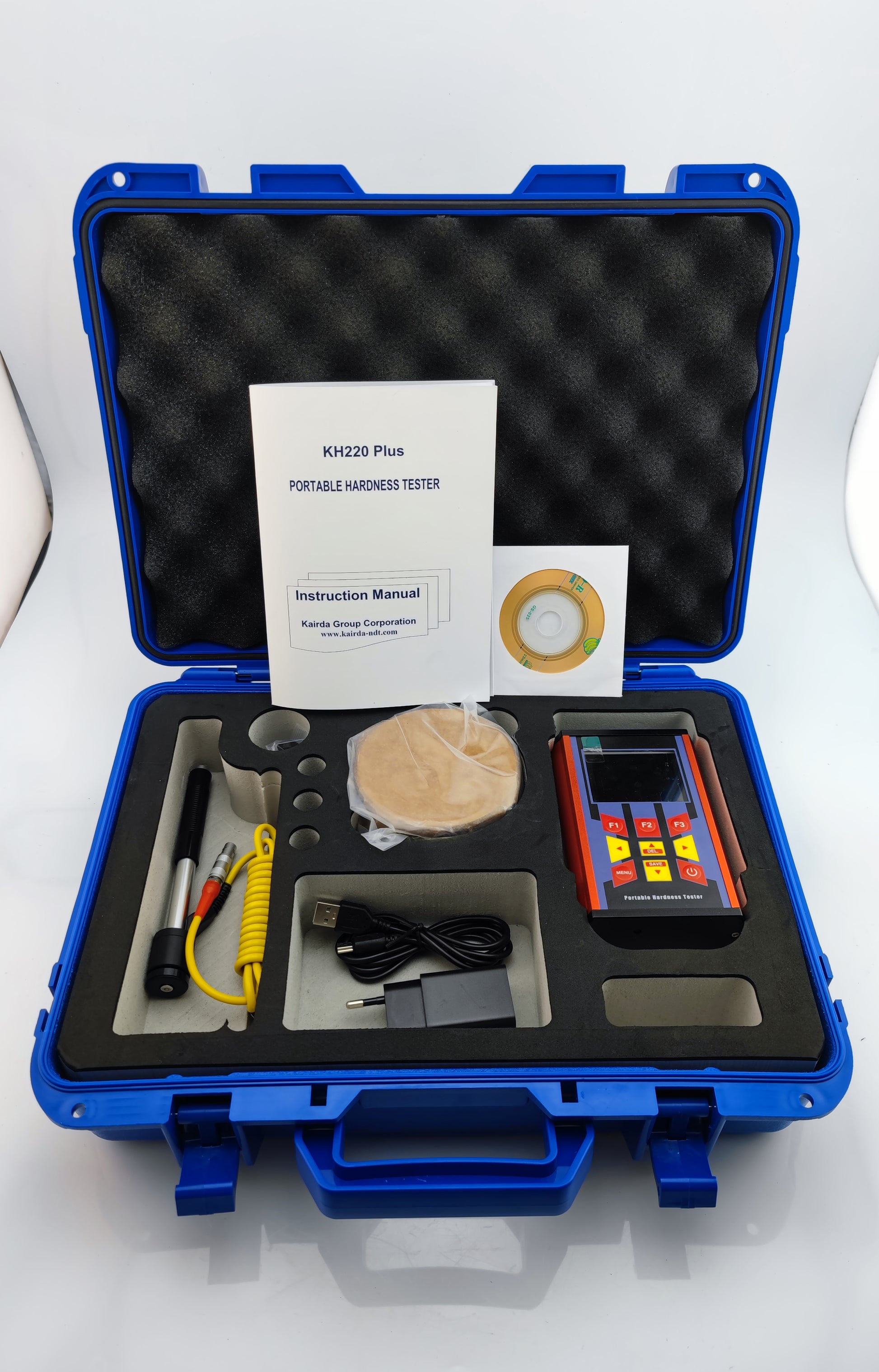

KH220 Plus main unit, D impact device, standard calibration block, standard support ring, brush, USB cable and charger, PC software, user manual and instrument case. Listed warranty: 2 years. Mini printer and other specialized accessories are not part of the standard package.
