KR230 Color Display Portable Surface Roughness Tester with Real-Time Waveform
Regular price
$799.00

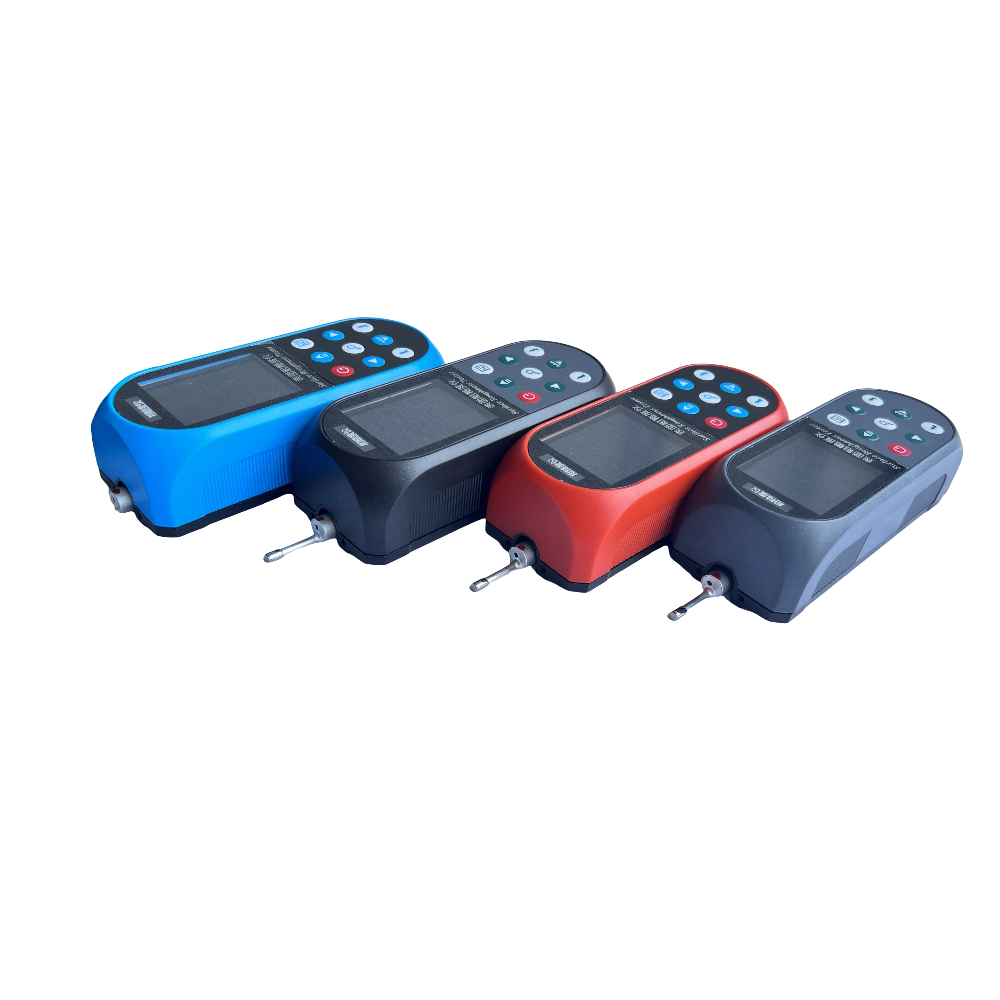

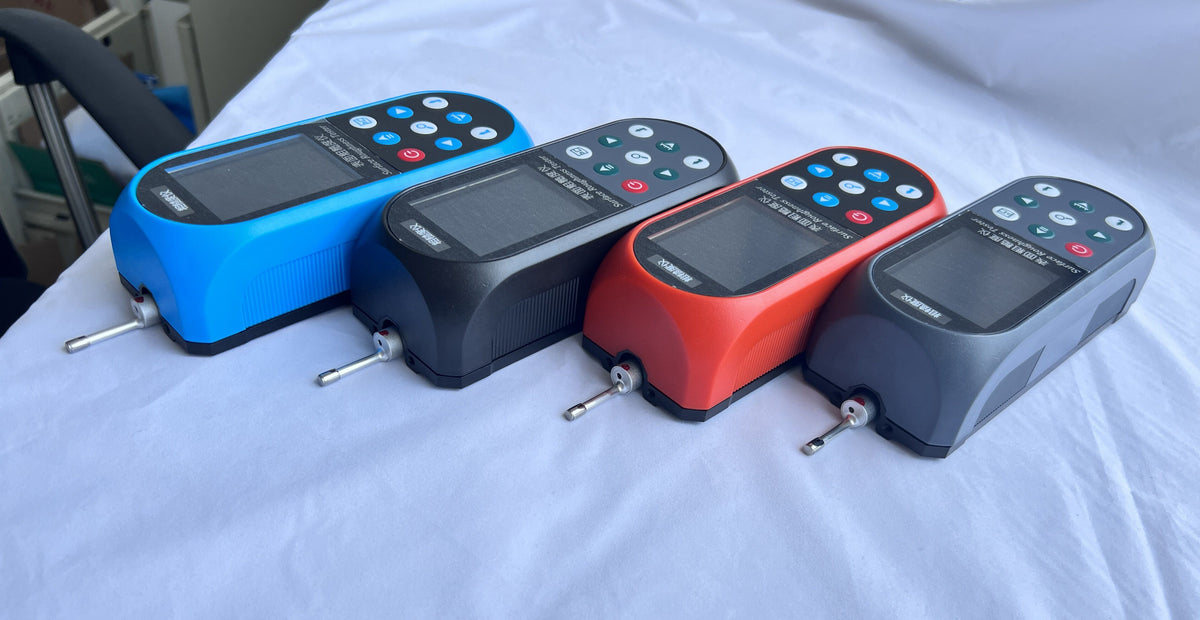

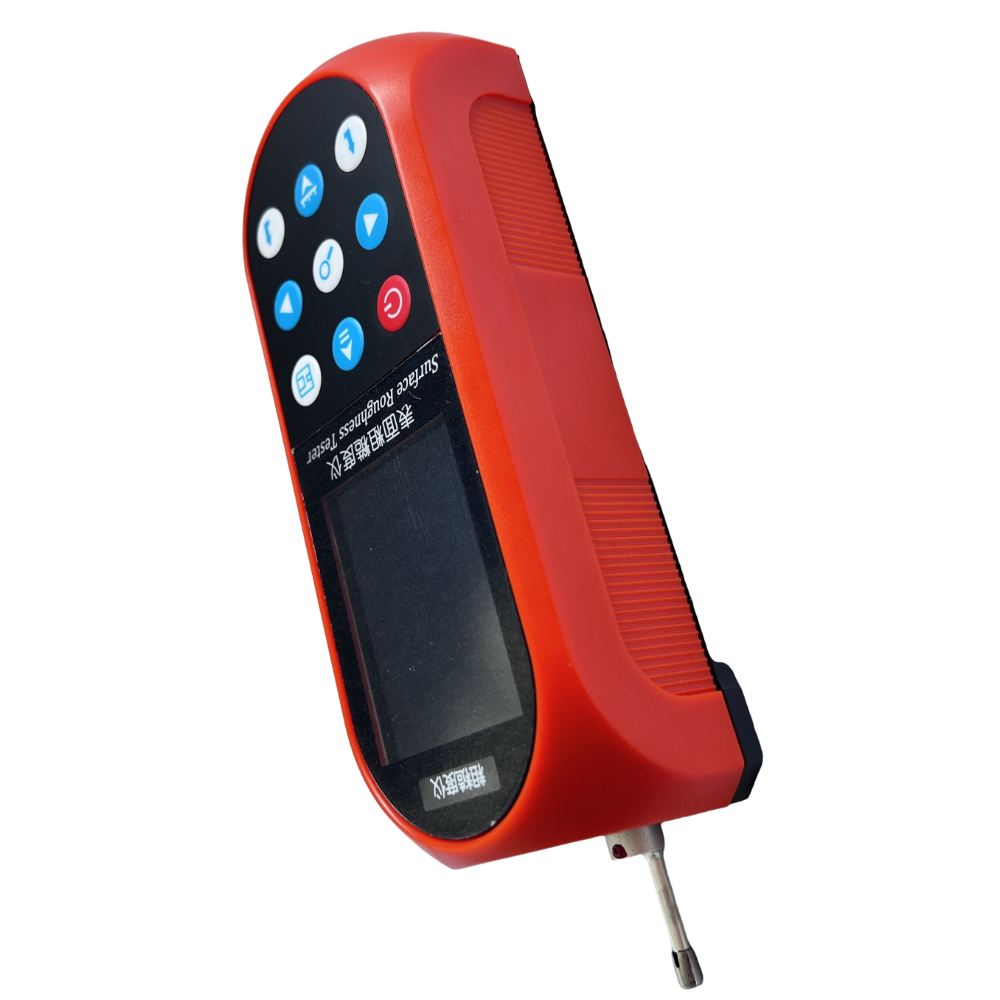

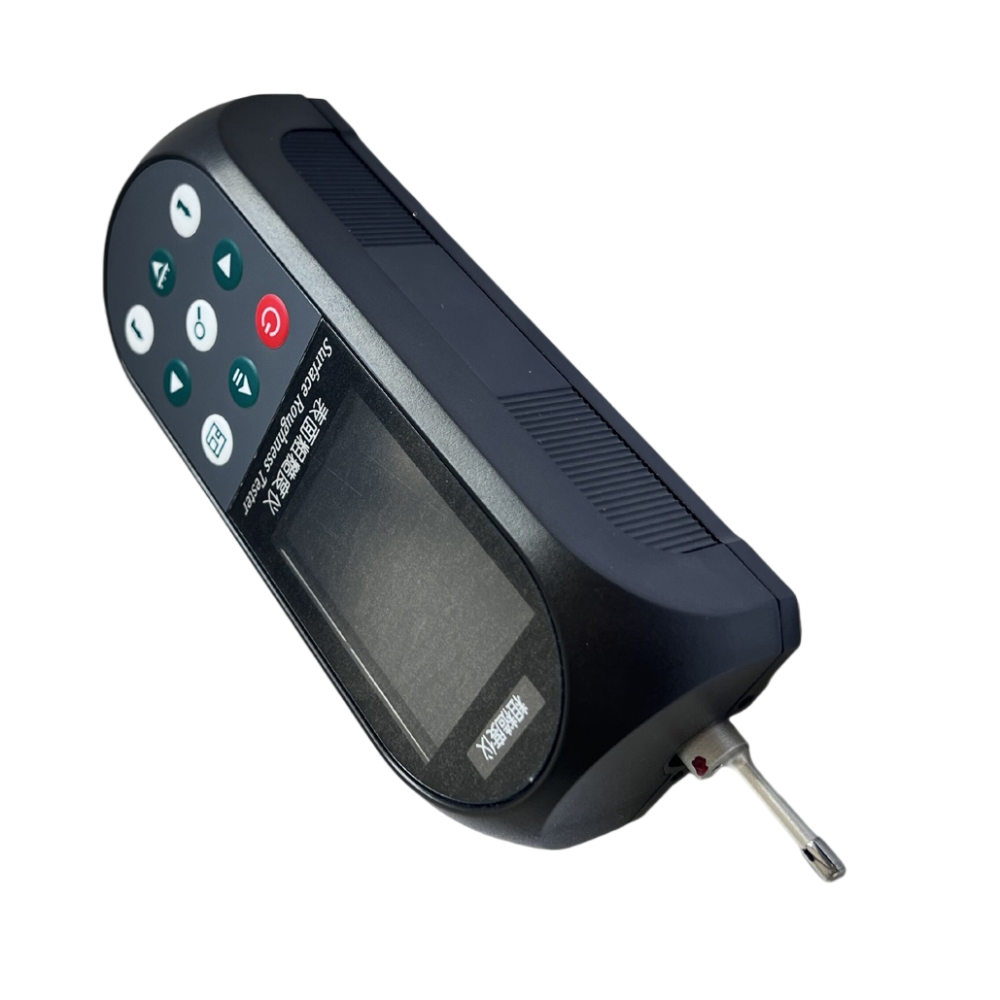

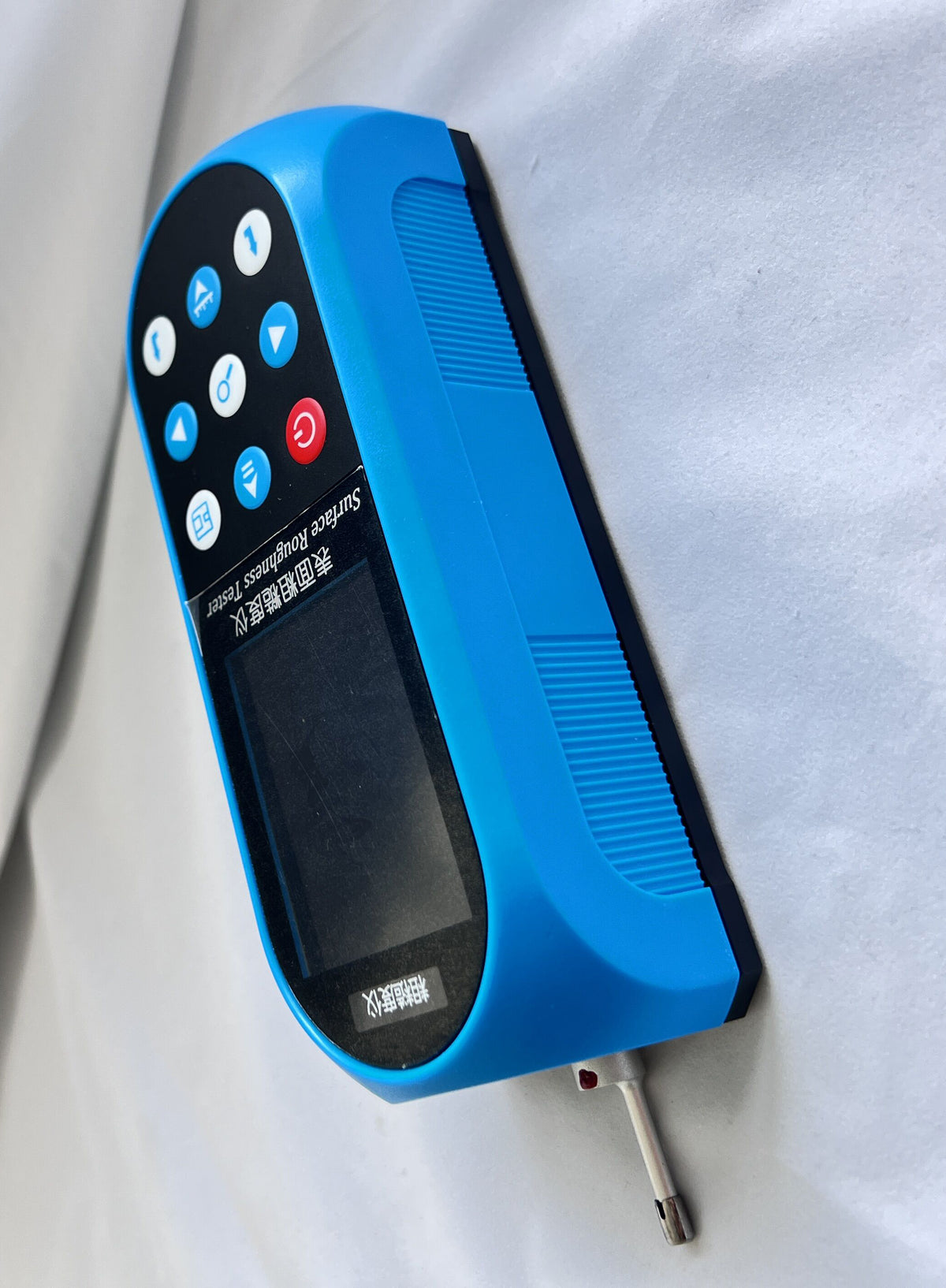

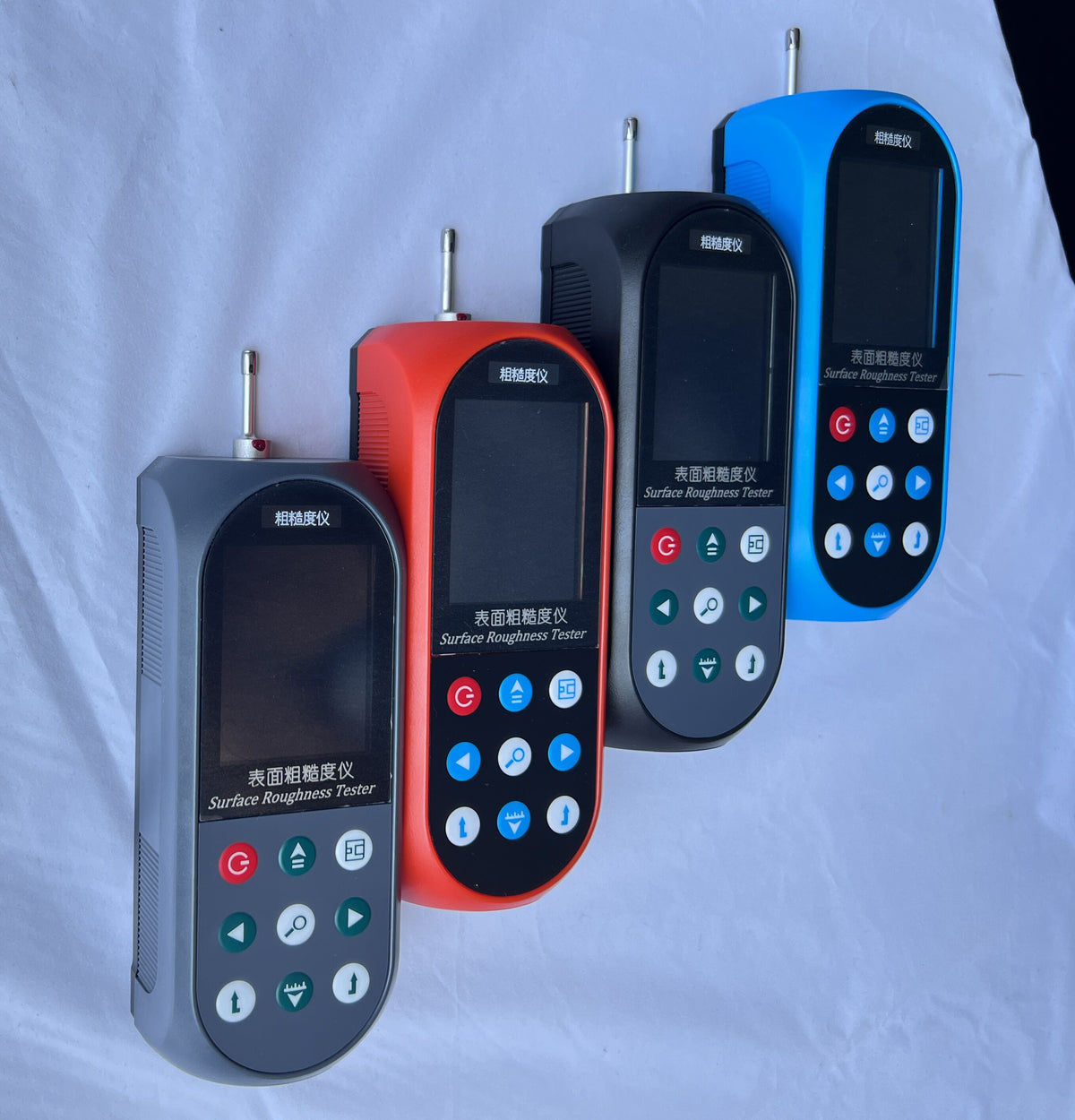

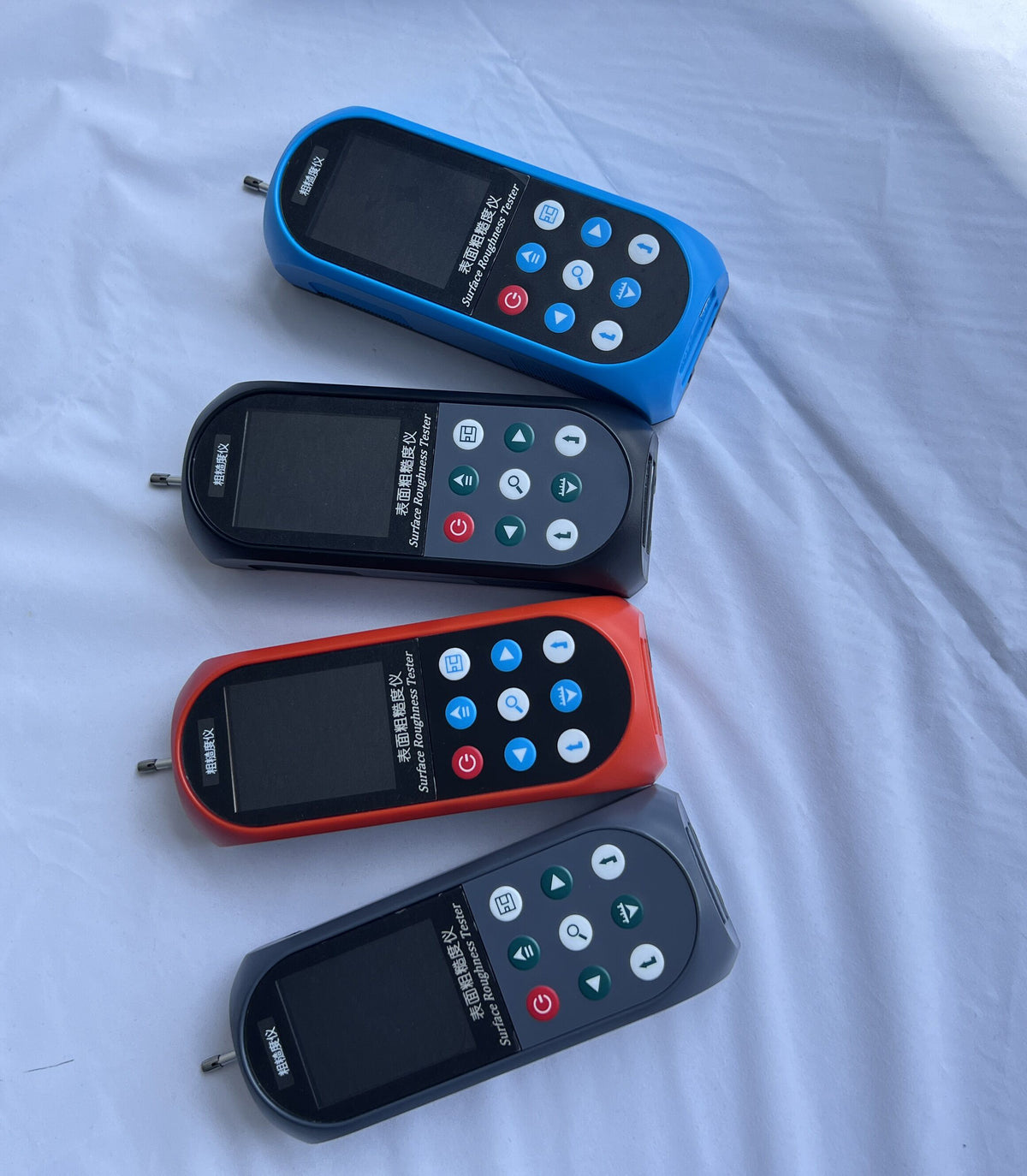

KR230 Color-Display Surface Roughness Tester

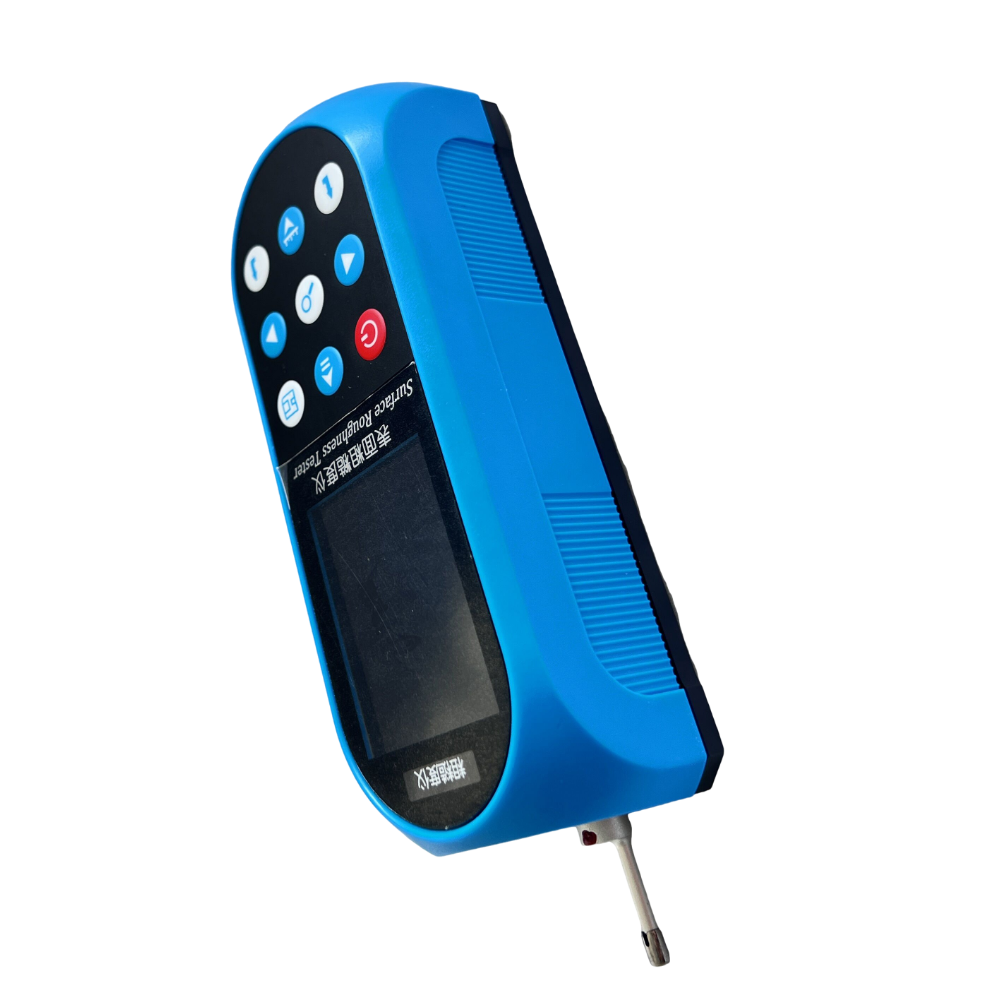

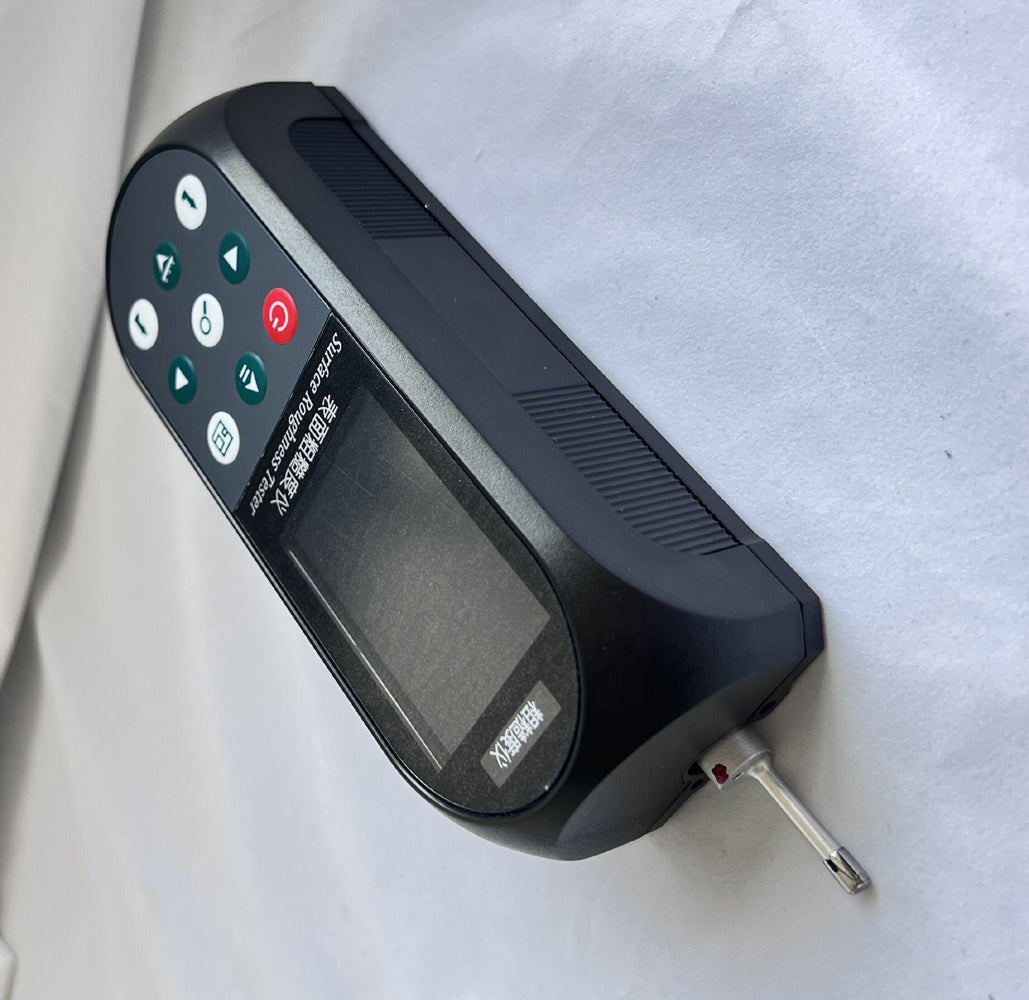

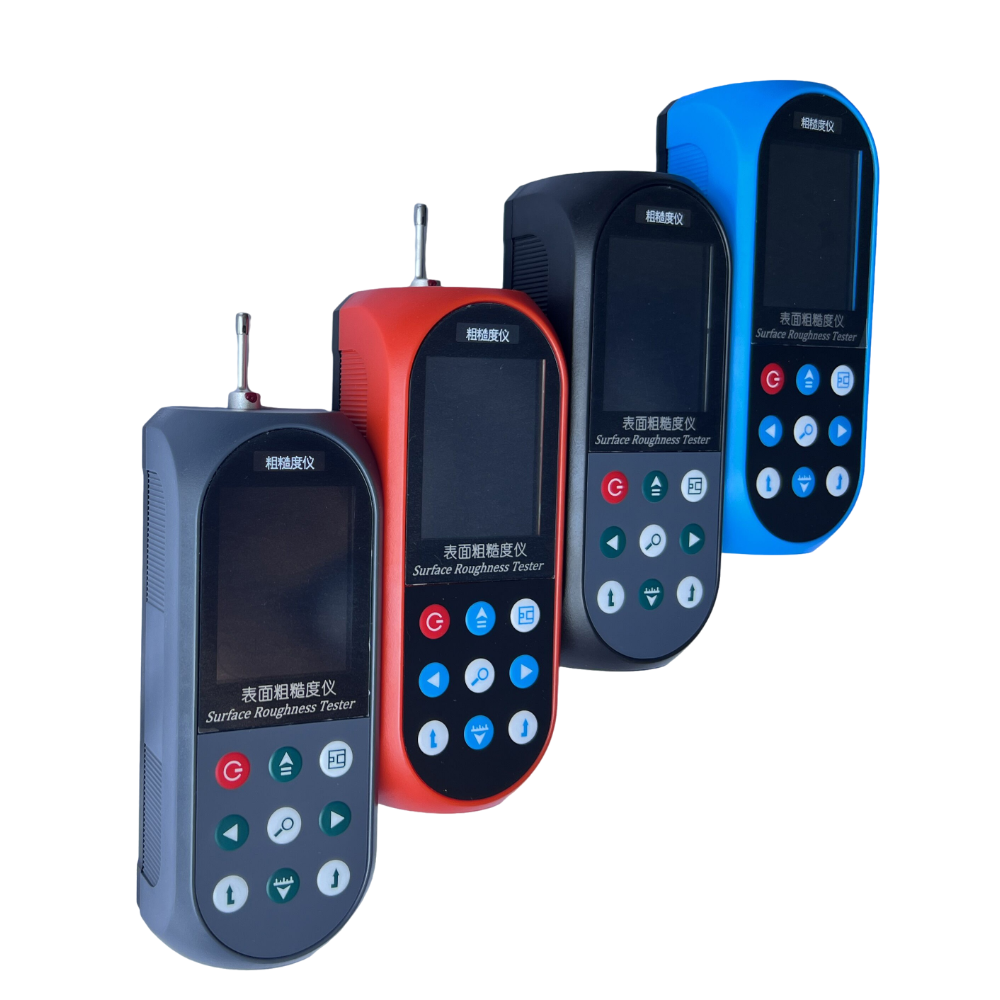

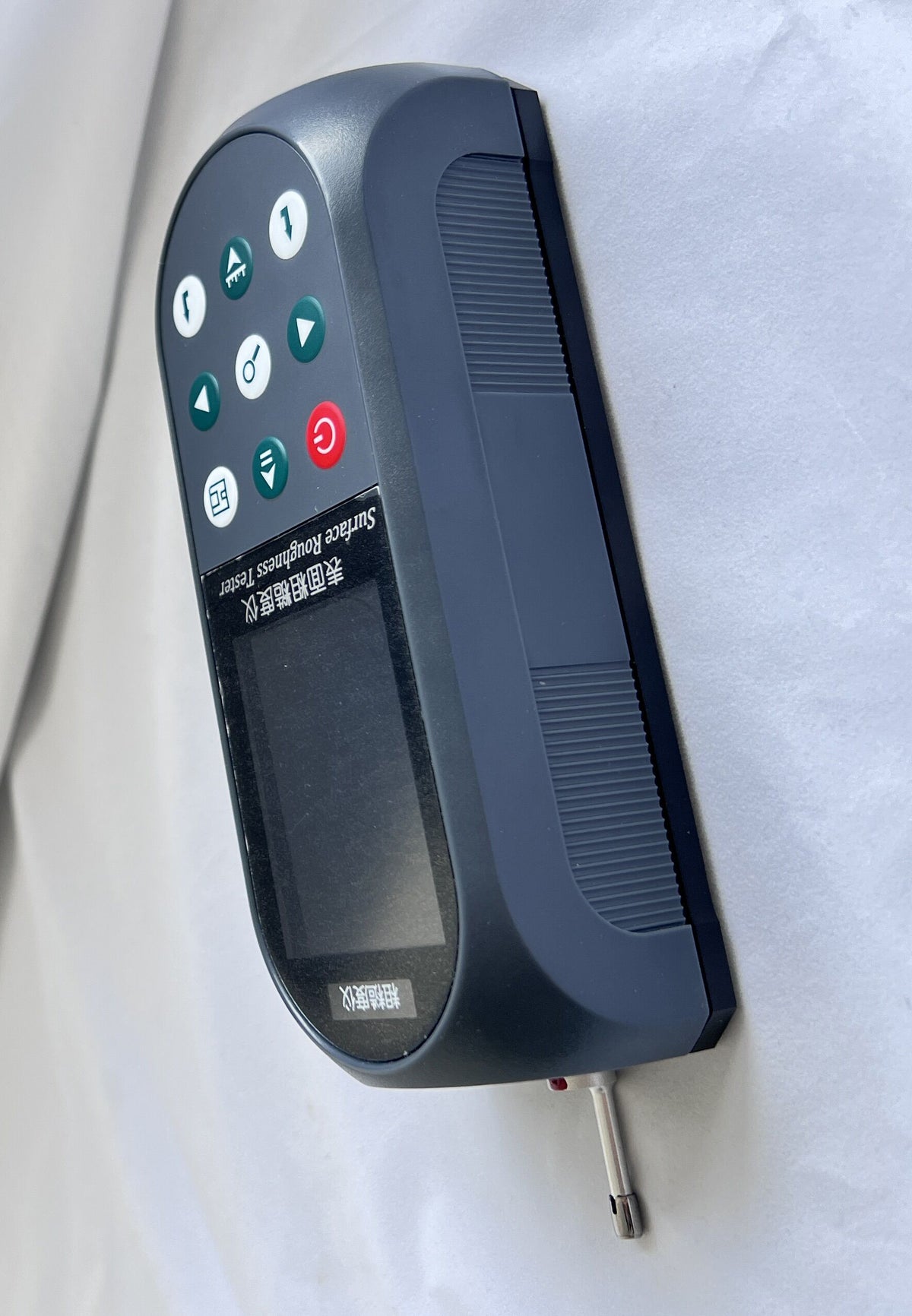

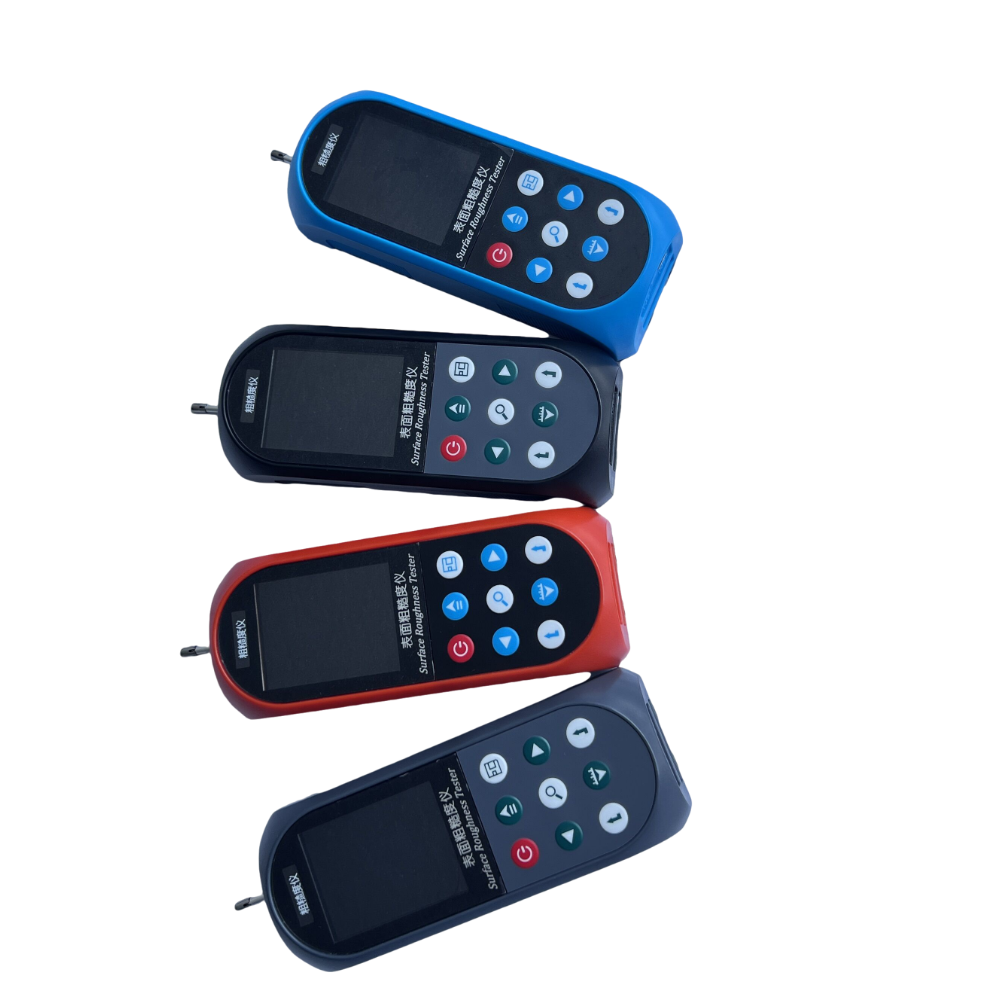

See the surface profile as you measure it. The handheld KR230 shows a real-time waveform and numerical roughness results on a 320 × 240 color display, helping you review machined surfaces at the workpiece rather than relying on a single final number.
Designed for on-site inspection
- Watch the profile: real-time waveform display, with primary profile, roughness profile and load-curve graphics.
- Review more parameters: listed measurements include Ra, Rz, Rq, Rt, Rp, Rv and other profile statistics.
- Set inspection limits: upper and lower alarms help flag out-of-range measurements.
- Save the detail: stores up to 100 records of raw data and measured profiles, with a real-time clock for recording.
- Work your way: adjustable display orientation and automatic range switching support convenient handheld operation.

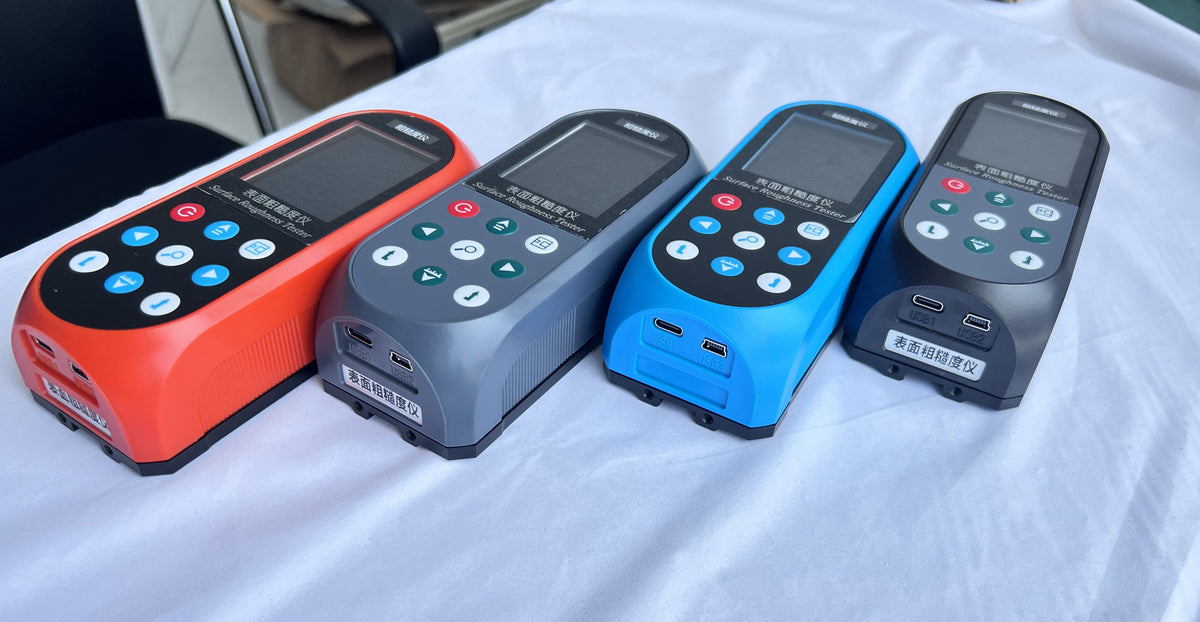

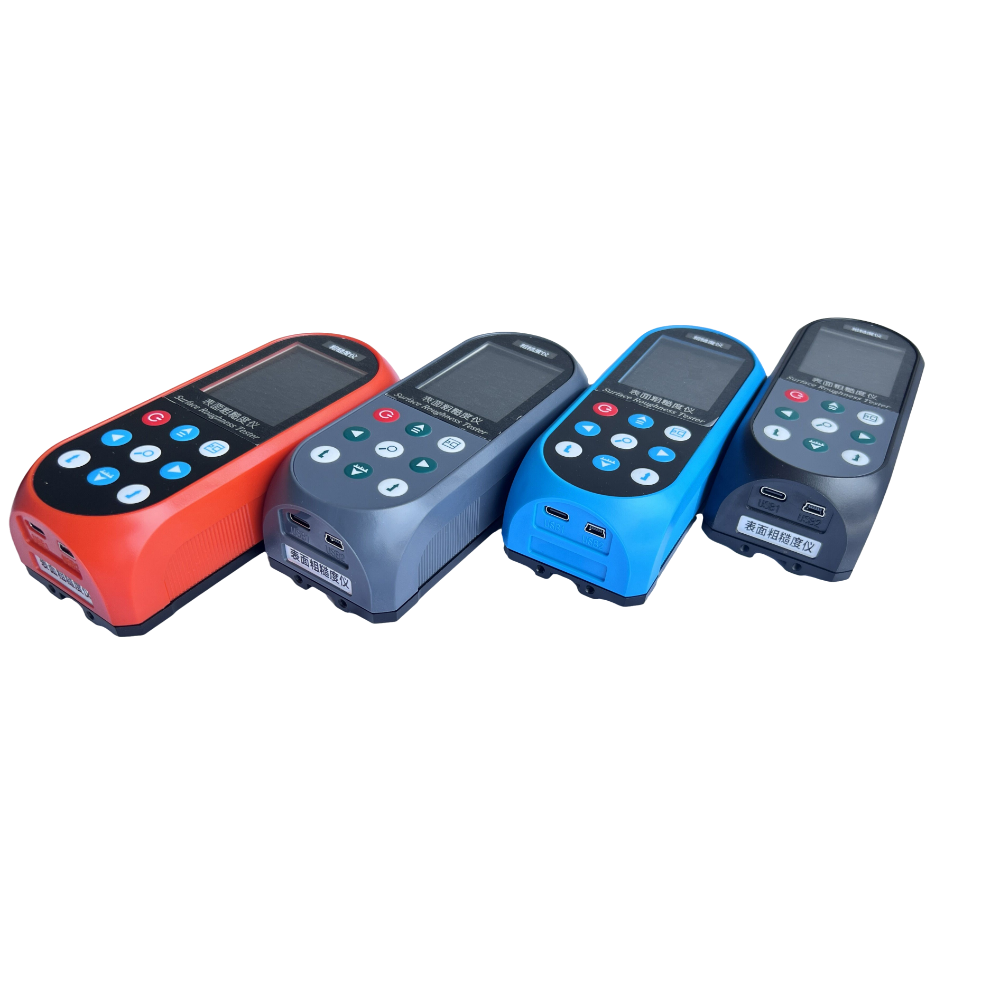

- Connect when needed: the listed Type-C and Mini USB interfaces support communication; connection to a computer or optional mini printer is described in the original specifications.
Technical specifications
- Screen: 320 × 240 color display.
- Vertical measurement range: 160 μm; horizontal travel: 17.5 mm.
- Listed Ra/Rq range: 0.005–16 μm; listed Rz/Rt range: 0.02–160 μm.
- Sampling lengths: 0.25, 0.8 and 2.5 mm; evaluation length: 1–5 sampling lengths.
- Filters: RC, PC-RC, Gaussian and D-P. Selectable standards listed in the original specifications include ISO 4287, ANSI B46.1, DIN 4768 and JIS B601.
- Listed repeatability: no more than 3%.
- Power: built-in 3.7 V rechargeable lithium-ion battery; listed continuous working time: 20 hours.
- Operating conditions: −20°C to 40°C; relative humidity <90%.
- Instrument size and weight: 142 × 55 × 40 mm; approximately 350 g.
Standard package
KR230 main unit, small-hole sensor, calibration block and bracket, nose piece, adjustable support, charging plug, USB cable, screwdriver, manual and instrument container. The small-hole sensor is listed in the standard package; other specialty sensors, a measuring stand, extension rod and printer are optional. Confirm the sensor and access requirements for the specific surface before measuring.
