Portable Ultrasonic Flaw Detector: A Reliable Tool for Industrial Non-Destructive Testing

In industrial manufacturing and quality inspection, many material defects cannot be identified by visual inspection alone. Internal cracks, inclusions, porosity, lack of fusion, voids, and delamination may exist inside a workpiece without any obvious surface signs. If these defects are not detected in time, they may affect product safety, structural strength, and service life.

An ultrasonic flaw detector is a commonly used non-destructive testing instrument. It uses ultrasonic signals to inspect the internal condition of materials. When ultrasonic waves encounter defects, boundaries, or material changes, reflected signals are generated. The instrument displays these signals as waveforms, allowing inspectors to evaluate the internal quality of the workpiece.

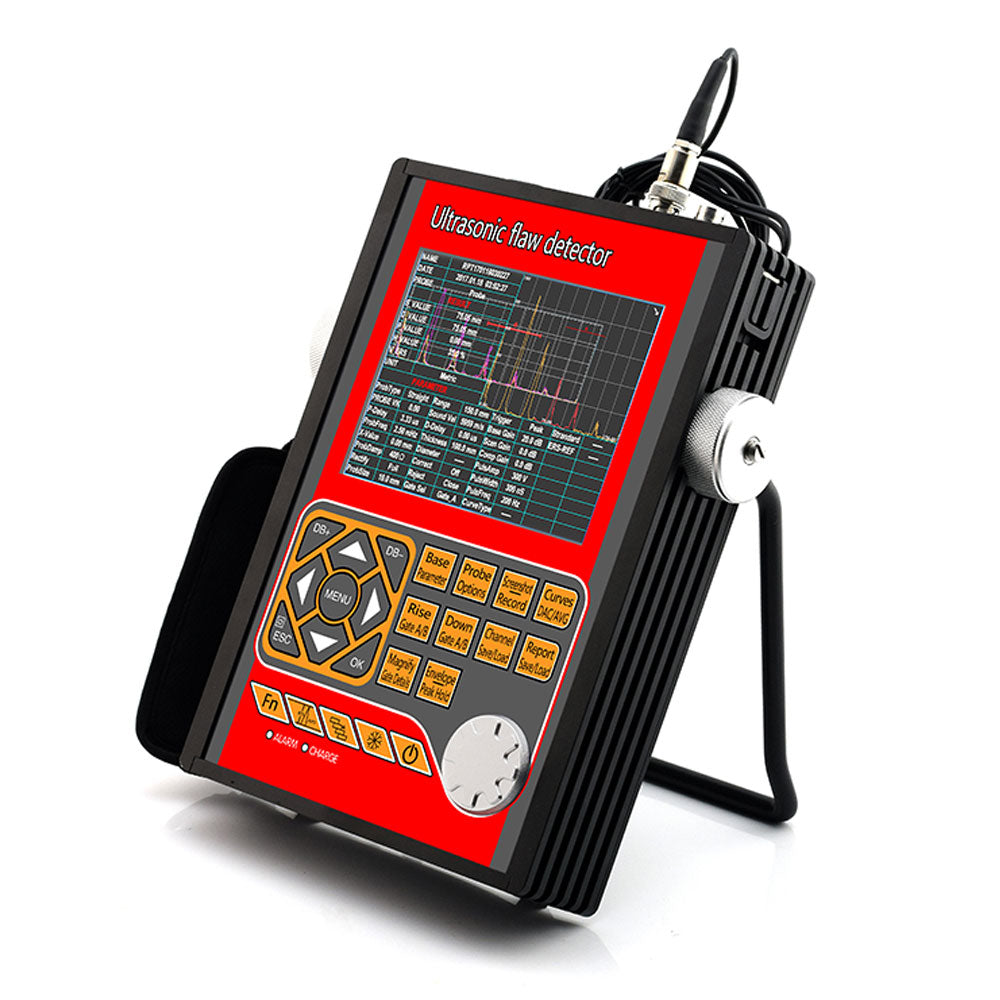

portable ultrasonic flaw detector for industrial non-destructive testing

What Is an Ultrasonic Flaw Detector?

An ultrasonic flaw detector is an instrument used to detect internal defects in materials without damaging the tested object. It usually includes a main unit, display screen, keypad, probe connector, probe, and cable.

During inspection, the probe sends ultrasonic waves into the material. When the waves encounter an internal defect or boundary, part of the signal is reflected back to the probe. The instrument then displays the reflected signal as a waveform, helping users analyze the location and condition of potential defects.

This type of equipment is commonly used for:

Weld inspection
Metal plate inspection
Forging and casting inspection
Pipe and pressure vessel testing
Internal defect detection in mechanical parts
Steel structure inspection
Industrial maintenance and quality control

For industries that require internal material inspection, an ultrasonic flaw detector is an essential testing tool.

Clear Waveform Display for Defect Analysis

Based on the product images, this ultrasonic flaw detector features a large display area that can show waveform signals and testing parameters. In ultrasonic testing, waveform display is highly important because inspectors analyze signal position, amplitude, and shape to evaluate internal material conditions.

A clear waveform display helps users observe testing results more directly. It supports defect location, signal interpretation, and inspection recording. For field inspectors, this improves testing efficiency and helps reduce the risk of misjudgment.

Professional Keypad Layout for Industrial Use

The instrument is designed with a professional keypad layout. From the images, the front panel includes multiple function buttons and directional controls, allowing users to adjust parameters, navigate menus, and manage testing functions during inspection.

Physical buttons are especially useful in industrial environments. In workshops or field conditions, operators may work with gloves, dust, oil, or outdoor lighting. Compared with fully touch-based operation, physical keys can provide a more stable and practical user experience.

The keypad layout is suitable for operations such as:

Gain adjustment
Gate setting
Waveform observation
Data recording
Parameter saving
Menu navigation
Report-related operation

External Probe Design for Flexible Inspection

The product images show that the instrument works with an external probe connected by cable. This design improves inspection flexibility and makes it easier to test different workpiece shapes, angles, and surface positions.

In real industrial inspection, many workpieces are not simple flat surfaces. Pipes, welds, curved structures, thick materials, and large metal components often require flexible probe positioning. An external probe allows inspectors to access testing areas more conveniently and improves field usability.

Portable Design for On-Site Testing

This ultrasonic flaw detector features a portable main unit design with a durable-looking housing. The images also show a support stand, which allows the device to be positioned conveniently during testing. This makes it easier for inspectors to place the instrument on a workbench, inspection table, or field surface while monitoring the display.

Portability is a major advantage for industrial non-destructive testing. Inspectors can bring the instrument directly to the workpiece instead of moving large components to a fixed testing station. This saves time and is especially useful for large equipment, pipe systems, steel structures, and maintenance applications.

Suitable for Multiple Industrial Applications

Ultrasonic flaw detectors are widely used in manufacturing, processing, installation, maintenance, and quality inspection. They help businesses identify material or welding defects during production and reduce safety risks, rework, and quality failures.

Typical applications include:

Internal defect inspection of metal plates
Weld crack and lack-of-fusion detection
Casting and forging defect testing
Pressure vessel and pipeline inspection
Steel structure testing
Mechanical component quality control
Equipment maintenance and safety evaluation

For industrial companies, an ultrasonic flaw detector is not only a testing device but also an important part of quality control and safety management.

Why Choose a Portable Ultrasonic Flaw Detector?

Choosing a portable ultrasonic flaw detector can improve inspection efficiency and strengthen quality control.

Its key benefits include:

Non-destructive testing without damaging the workpiece
Detection of hidden internal defects
Suitable for field and mobile inspection
Improved efficiency for weld, pipe, and metal testing
Reduced quality risks and safety hazards
Support for production process inspection
Useful for maintenance, acceptance, and final inspection

For businesses involved in metal processing, machinery manufacturing, welding engineering, pressure vessels, pipelines, and industrial inspection, this type of instrument offers strong practical value.

 ultrasonic flaw detector main unit and probe for metal inspection

Conclusion

A portable ultrasonic flaw detector is a practical instrument for industrial non-destructive testing. With clear waveform display, professional keypad control, external probe connection, portable structure, and on-site inspection capability, it is suitable for weld testing, metal inspection, pipe inspection, pressure vessel testing, mechanical part inspection, and industrial quality control.

If your business needs a more efficient way to identify internal material defects, improve product quality stability, and strengthen field inspection capability, a portable ultrasonic flaw detector is a professional testing solution worth considering.

Call to Action

Looking for a reliable ultrasonic flaw detector for industrial non-destructive testing? Contact us today to learn more about product specifications, application scenarios, and bulk order options.
