A heat-treatment shop needs to verify 300 hardened shafts before the truck leaves at 4 p.m. A foundry gets a rejection notice and must produce HBW values on a coarse-grained casting. A mill engineer wants hardness data on a 40-tonne roll that is already installed. Each of these jobs points to a different type of hardness tester. Knowing the main hardness tester types — Rockwell, Brinell, Vickers, and portable Leeb — is the fastest way to buy the right instrument the first time. This guide compares all four side by side: how each method works, which scales apply, where each method excels, and where each one falls short.
What Is Hardness Testing? (Quick Primer)
Hardness testing measures how well a material resists a permanent indent. A defined indenter is pressed into the surface with a defined force, and the result — indentation depth or indentation size — is converted into a hardness value. It is one of the quickest mechanical checks in quality control, and in its portable forms it qualifies as non-destructive testing (NDT): the part stays in service with, at most, a small mark.
The method matters because the four methods answer different questions. Bench methods such as Rockwell, Brinell and Vickers measure the indent itself, so the part has to come to the instrument. Portable rebound methods such as Leeb measure how an impact body bounces back, so they can test parts that will never fit on a bench. Pick the wrong one and you damage the part, get unstable readings, or lose hours to setup.

The 4 Main Hardness Tester Types at a Glance
- Rockwell (ASTM E18) — measures indentation depth; direct scale readout in HRC/HRB/HRA; the fast production method.
- Brinell (ASTM E10) — large ball indenter, indent measured optically; results in HBW; the method for castings and coarse grain.
- Vickers (ASTM E92) — diamond pyramid, indent measured optically; results in HV; one continuous scale from soft metals to hardened tool steel.
- Leeb (ASTM A956) — rebound method for portable testing; Leeb value (HL), converted to HRC/HBW/HV; for large or installed parts.
Hardness Tester Comparison Chart: Rockwell vs Brinell vs Vickers vs Leeb

    Rockwell Hardness Testers: Built for Production Speed
A Rockwell hardness tester is built for speed. It measures the depth of the indent, not its width, so the scale value appears directly on the display — no microscope, no optical measurement. That is why heat-treatment shops run a Rockwell hardness tester at the bench next to the furnace, part after part, all shift long.
The scale depends on the material and the load:
- HRC — diamond cone indenter, 150 kgf (1,471 N) total load; the standard scale for hardened steel, roughly 20–70 HRC.
- HRB — 1/16 in (1.588 mm) ball, 100 kgf (981 N); for soft steels, copper and aluminum alloys.
- HRA — diamond cone, 60 kgf (588 N); for thin hardened layers and carbide, where the HRC load would break through.
A bench instrument in accordance with ASTM E18 is verified quickly against a calibrated test block before each shift, so you know the machine is healthy before the first part.
Best Applications
- Routine QC of through-hardened parts: shafts, gears, bearings, dies.
- Incoming inspection of steel bar and forgings against mill certificates.
- Fast sorting of mixed or suspect lots — an HRC readout takes seconds.
Limitations
- The surface must be smooth, clean and solidly supported on an anvil; scale, oxide or a curved face shifts the reading.
- Very thin parts need a lighter scale or a different method.
- It is a poor fit for rough castings — the indentation depth is too small to average over coarse grain.
For production floors doing daily hardness checks, our [Rockwell hardness tester range] covers the common HRC/HRB workloads.

Brinell Hardness Testers: For Castings and Coarse-Grained Materials
Where Rockwell measures depth, a Brinell hardness tester works with area. It presses a 10 mm tungsten carbide ball into the part — typically at 3,000 kgf (29.42 kN) for steel and iron — then the operator measures the diameter of the indent optically and reports the result in HBW. (The W denotes the tungsten carbide ball; HBS, the old steel-ball designation, is obsolete under current ASTM E10 practice.)
The large indent is the whole point. It averages over grain boundaries, sand-texture roughness and local porosity — exactly the things that ruin other methods on castings. If you test gray or ductile iron castings, coarse-grained forgings, or rough-machined stock, Brinell testing in accordance with ASTM E10 gives stable, repeatable numbers a customer will accept.
Best applications:
- Foundry and casting QC, including large castings.
- Heavy plate, bar stock and forgings with as-rolled or rough-turned surfaces.
- Weld caps on thick plate, where a large averaged indent is more useful than a pinpoint reading.
Limitations: The indent is large enough to matter on finished surfaces. The test is slower — force hold, removal, optical measurement. And very hard or thin parts sit outside its envelope, because the indent becomes too small to measure reliably. For casting-heavy inspection programs, see our [Brinell hardness tester range]([Brinell hardness tester product page URL]).
Vickers Hardness Testers: Precision for Thin Layers and Micro Parts
A Vickers hardness tester presses a diamond pyramid with a 136° face angle into the surface, then measures the two diagonals of the square indent under a microscope. From the diagonals and the test force, the instrument calculates the HV value. Because the indenter is diamond and the scale is continuous, one method covers everything from soft aluminum at under 50 HV to nitrided tool steel well above 1,500 HV — without switching indenter families.
The test force defines the application. Standard Vickers tests — for example HV10, meaning 10 kgf (98.1 N) — suit general lab work on polished samples. Micro-Vickers works at gram-level forces, small enough to place a single indent inside a case-hardened layer, a nitrided case, or a coating a few micrometers thick.
Best applications:
- Case depth measurement on carburized or nitrided parts, using a line of indents across a polished cross-section.
- Coatings and surface layers where an HRC load would punch through.
- Small parts: fine stamped components, wire, medical and precision parts.
Limitations: Optical measurement takes time and operator skill. Micro work demands a polished — often etched — cross-section for meaningful results. Throughput is far below Rockwell, so Vickers is rarely the right production-floor method.
Portable Hardness Testers: Leeb (and UCI) for Field Testing

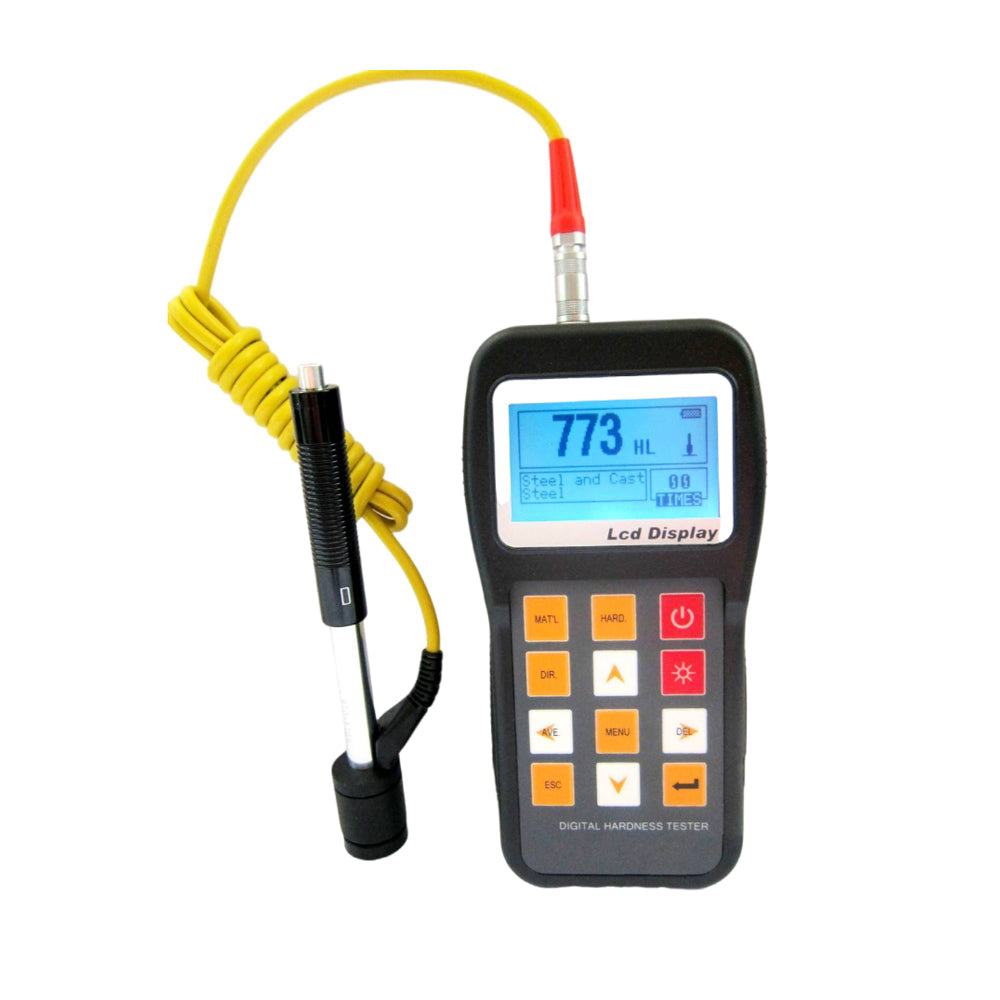

Bench methods assume the part comes to you. In power plants, steel mills and shipyards, it is the other way around. A portable Leeb hardness tester is built for that: you hold a small probe against the part, release a spring-loaded impact body with a tungsten carbide ball, and the instrument compares rebound velocity to impact velocity. The Leeb value (HL) is reported directly and converted to HRC, HBW or HV for the tested material class, in accordance with ASTM A956.
The impact device is matched to the part:
- D — the standard device for most steel parts.
- DC — compact body for tight spaces and inside bores.
- G — higher impact energy for large, heavy parts such as rolls and castings.
- C — lower impact energy for lighter parts and finer surfaces.
- E —  confirm which impact device families are stocked in the SUNNYSONG catalog before publishing
Leeb needs mass. The part must be thick and heavy enough not to move or absorb the impact, or the rebound reading drifts. Every impact device has minimum thickness and mass limits — check the specification before testing thin-walled or light parts, and when in doubt, verify on a test block in the same support condition you will use on the part.
One honest boundary: a portable Leeb hardness tester is a sorting and verification tool, not a reference instrument for disputed borderline cases — for lot acceptance right at a spec limit, confirm with a bench test. Used honestly, with the right impact device and a test-block check, Leeb gives fast, repeatable data on parts that could never reach a bench. See our [portable Leeb hardness tester range]([portable Leeb hardness tester product page URL]) for field kits and impact device options.


How to Choose a Hardness Tester: 5-Step Selection Guide
These five steps work for any of the hardness tester types above.
1. Start from the drawing, not the catalog. The scale on your spec or customer print — 45 HRC, 200 HBW, 600 HV — defines the method. Test in the scale the drawing calls for whenever possible; conversions between scales are approximations, not equivalents.
2. Match the part to the machine. Small, transportable parts go to a bench. Large, installed or already-assembled parts call for a portable method.
3. Be honest about surface condition. Rough, as-cast or coarse-grained surfaces push you toward Brinell's large indent or careful Leeb technique; polished micro-sections favor Vickers.
4. Set throughput expectations. Hundreds of parts per shift points to Rockwell speed. A few precise measurements per day points to Vickers.
5. Budget for the whole system. Test blocks, indenters and impact devices, stands and calibration are part of the cost. A low list price that forces a second purchase is not a saving — plan total cost, including technical support.
